Code 21 No Ignition Reference - 4-CYL

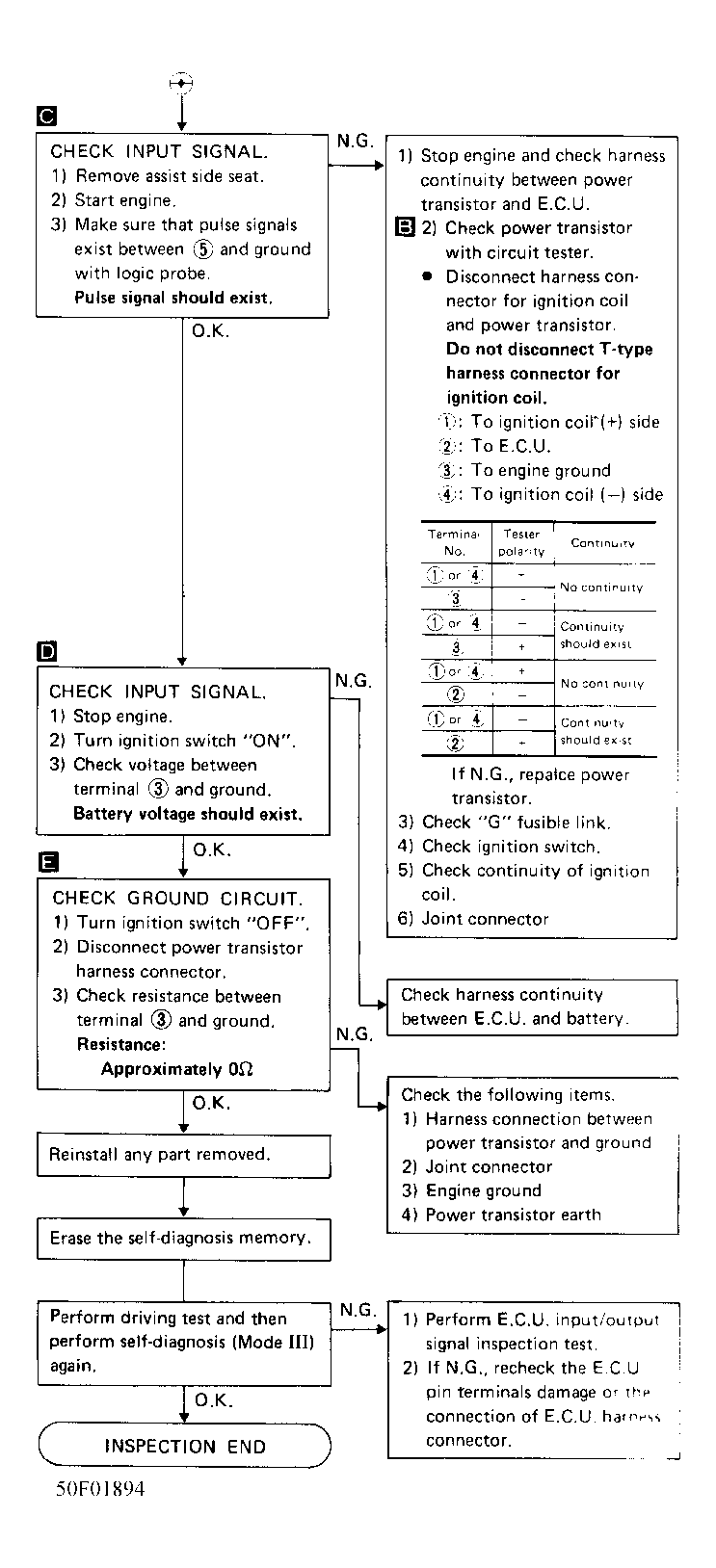

Fig 1: Code 21 Pathfinder, Pickup (1 of 2) (4-Cylinder)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Code 21 Pathfinder, Pickup (2 of 2) (4-Cylinder)

Courtesy of NISSAN MOTOR CO., U.S.A.
