Code 32 EGR Sensor

Fig 1: Maxima Code 32 (1 of 2)
G121251Courtesy of NISSAN MOTOR CO., U.S.A.

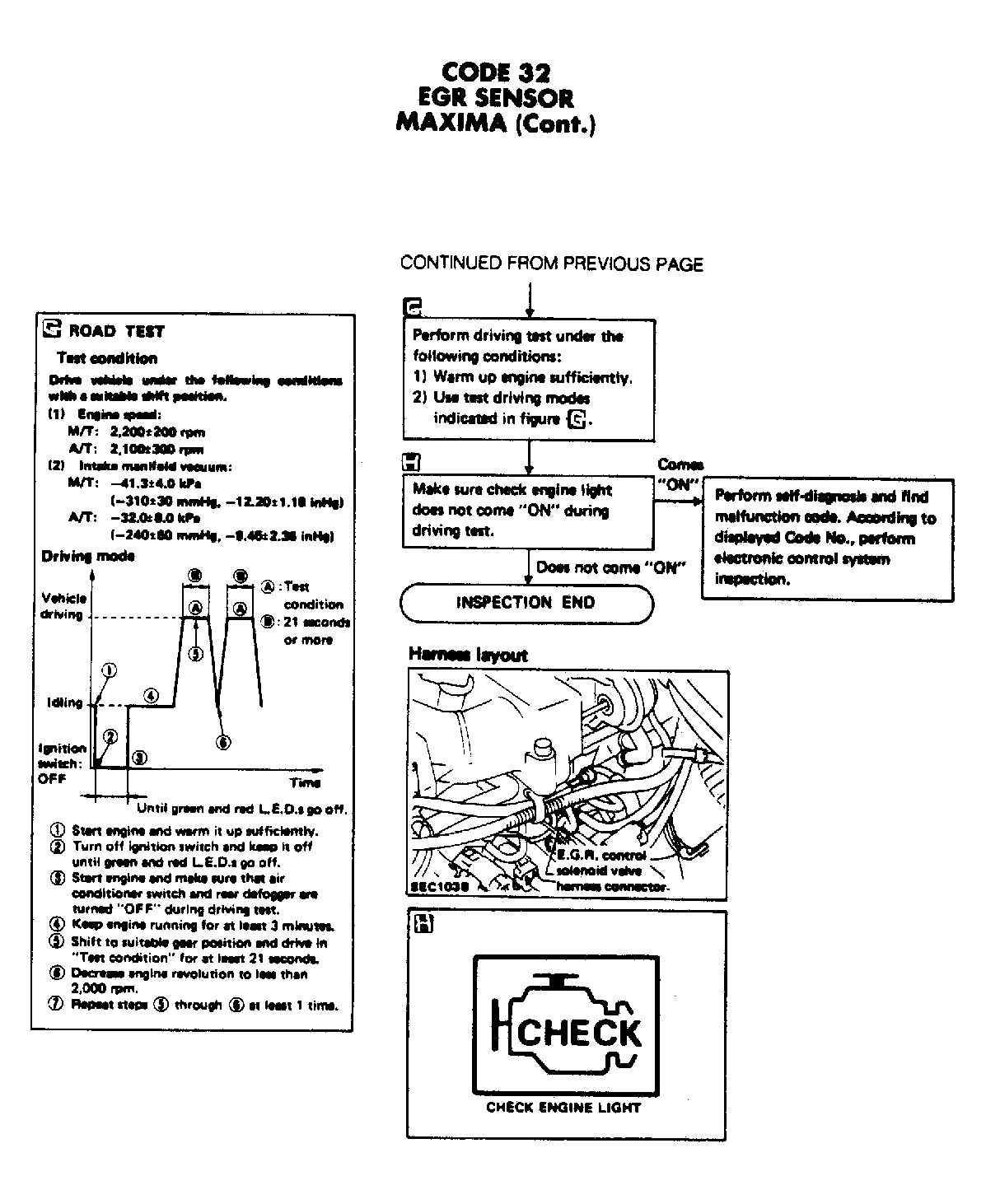

Fig 2: Maxima Code 32 (2 of 2)
G121252Courtesy of NISSAN MOTOR CO., U.S.A.
