Control Units
CONTROL UNITS LOCATION
| Component | Location | |
|---|---|---|
| A/C Fan Control Amplifier | ||
| Automatic A/C Models | Under dash, on A/C-heater blower motor housing. See Figure . | |
| Manual A/C Models | Under dash, on A/C-heater blower motor housing. See Figure . | |
| Adjustable Shock Absorber Control Unit | In luggage compartment, behind spare tire. See Figure . | |
| Automatic Speed Control Device (ASCD) Control Unit | On driver's kick panel, behind relays. See Figure . | |
| Digital Cluster Power Unit | Under center of dash, on left side of center console. See Figure . | |

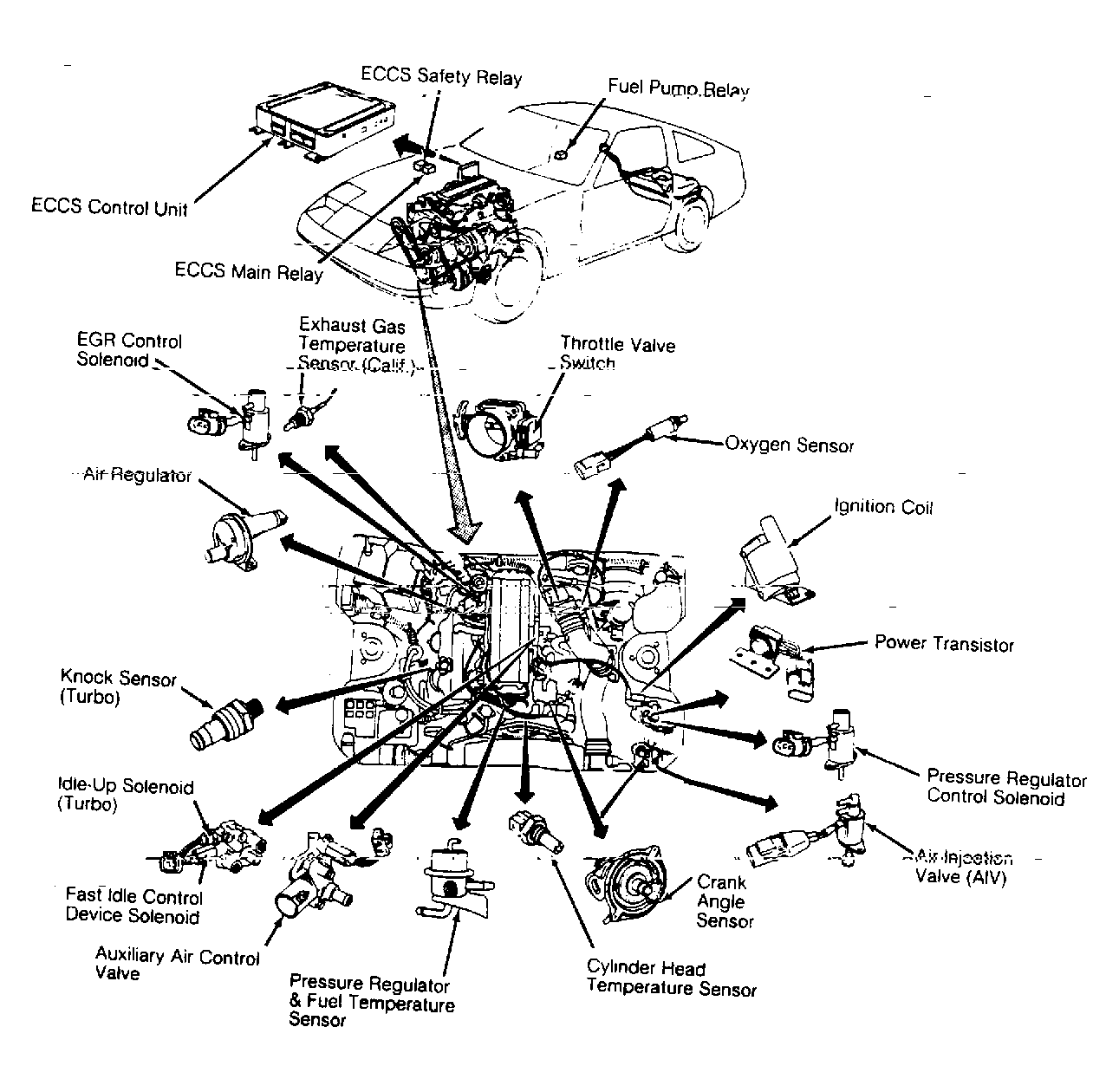

| Electronic Concentrated Control System (ECCS) Control Unit | Under right side of dash, on passenger's kick panel. See Figure , Figure & Figure . | |
| Interlock Control Unit (A/T) | To left of brake pedal. See Figure . | |
| Lock-Up Solenoid Control Unit (A/T) | In luggage compartment, behind spare tire. See Figure . | |
| Theft Warning Control Units | Under passenger's seat. See Figure . | |
| Time Control Units | Under right side of dash, on passenger's kick panel. See Figure . | |
