Fuel Pump

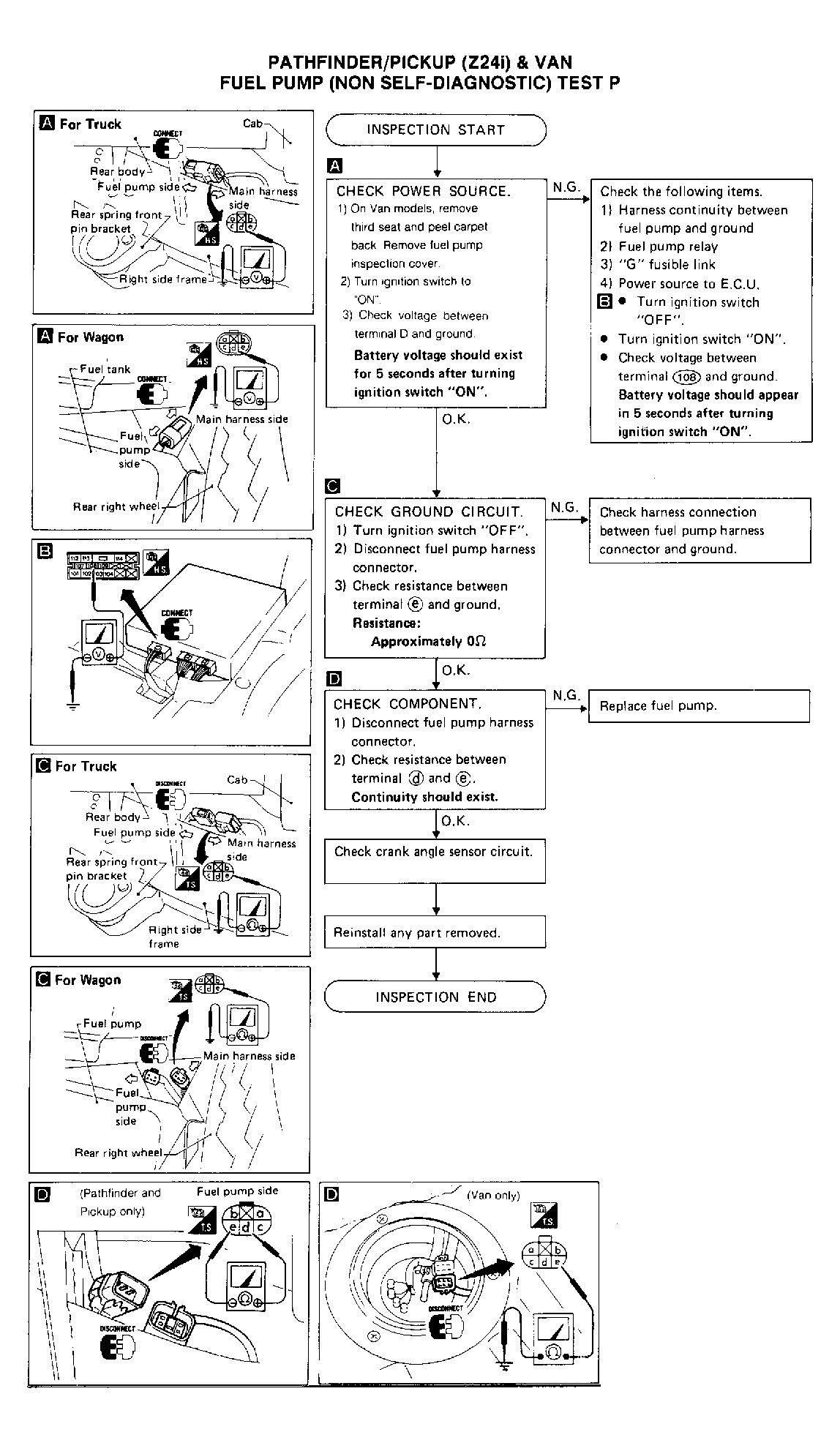

Fig 1: Test P, Van

G61736

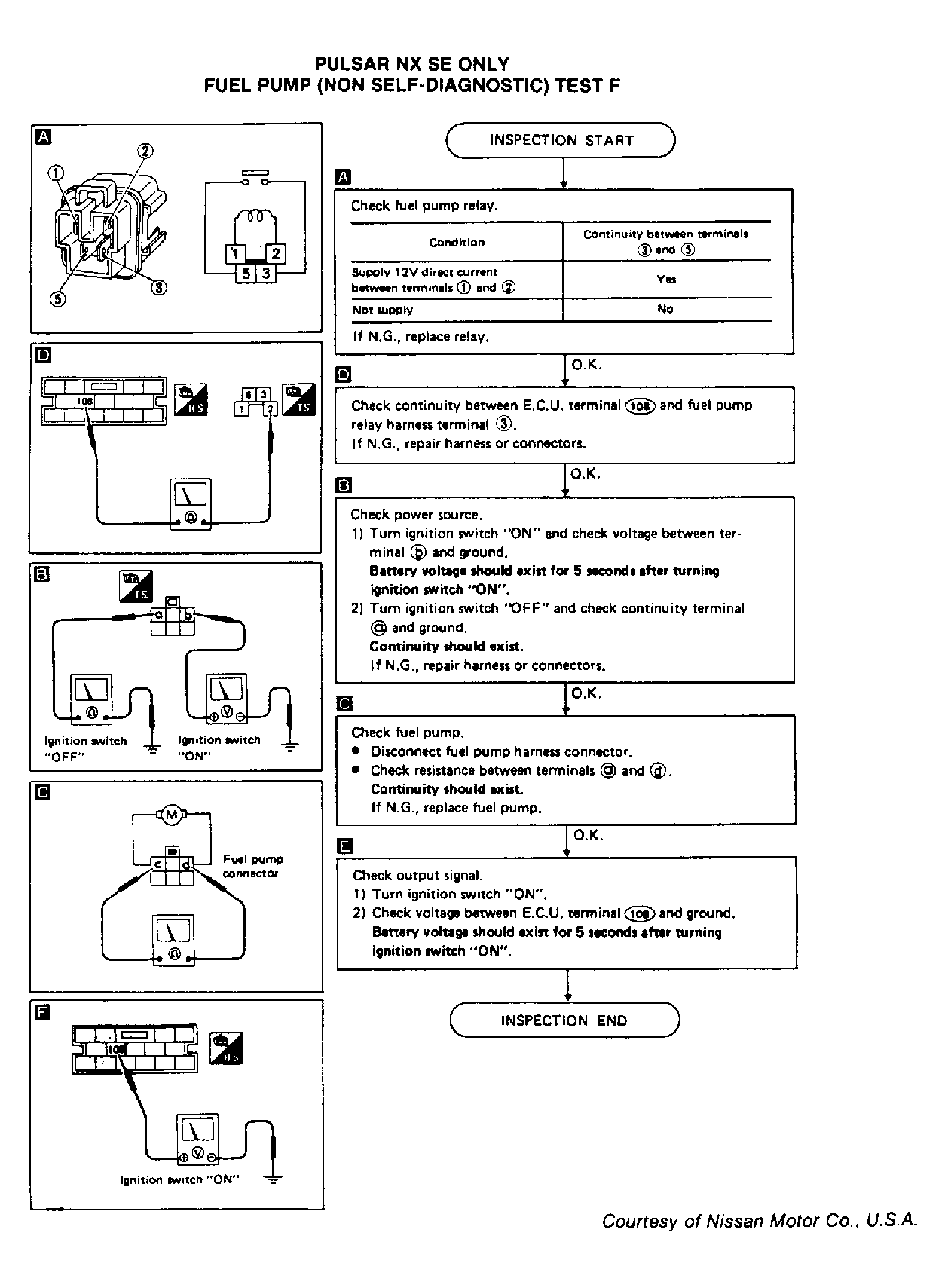

Fig 2: Test F, Pulsar NX SE

G61696

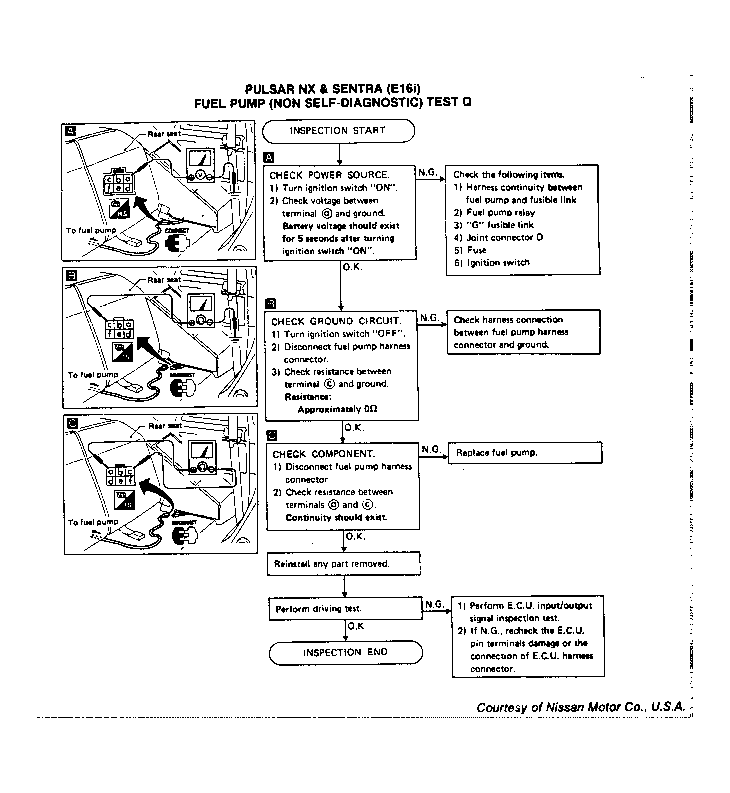

Fig 3: Test Q, Pulsar NX & Sentra (E16i)

G61742
