Home >> Nissan-Datsun >> 1987 >> Sentra SE, Automatic >> Repair and Diagnosis >> Engine Performance >> System >> ECC CEC System >> Non Self-Diagnostic Component Testing Charts >> Air Regulator

Air Regulator

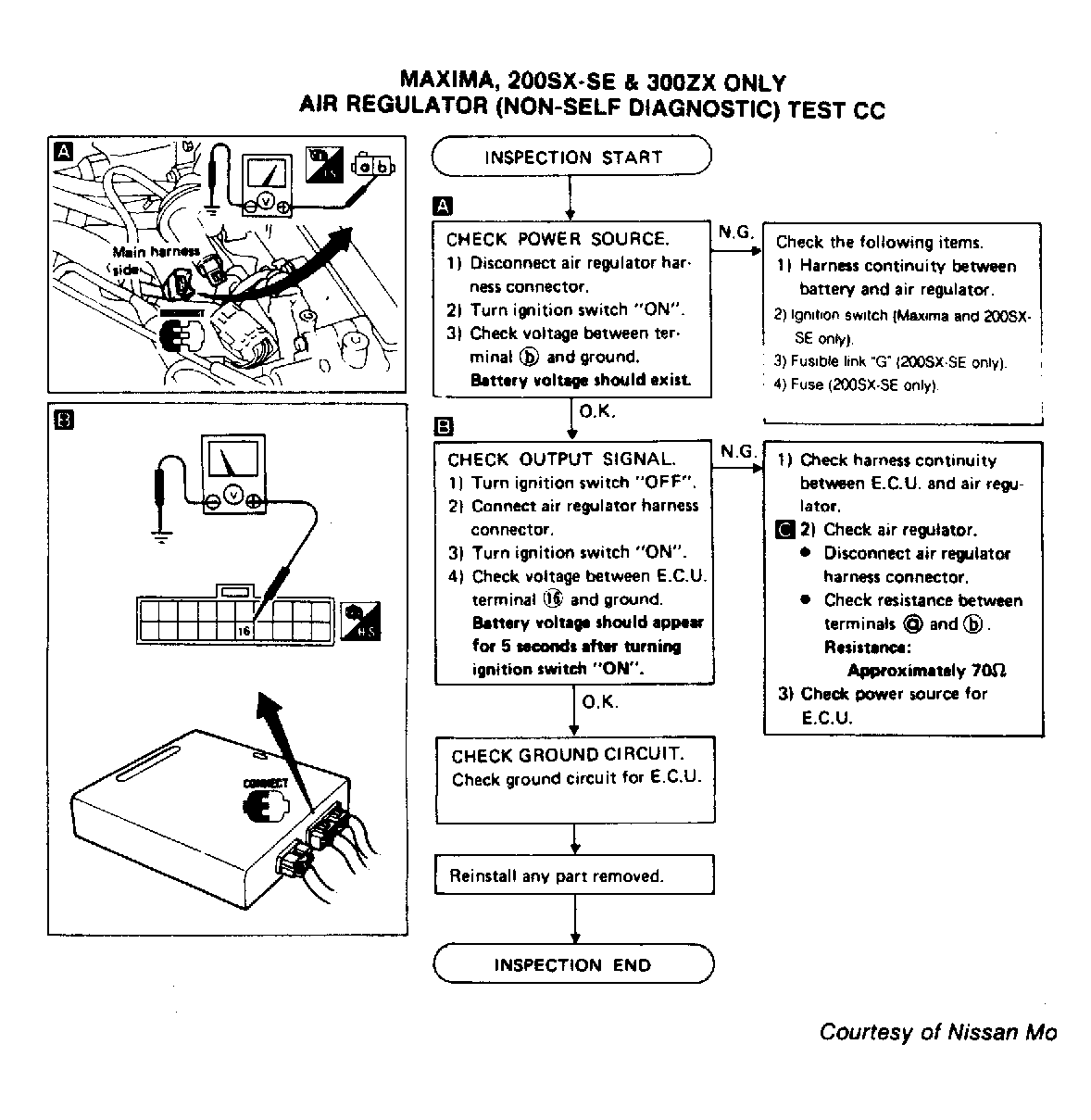

Fig 1: Test CC, Maxima, 200SX-SE & 300ZX

G61779

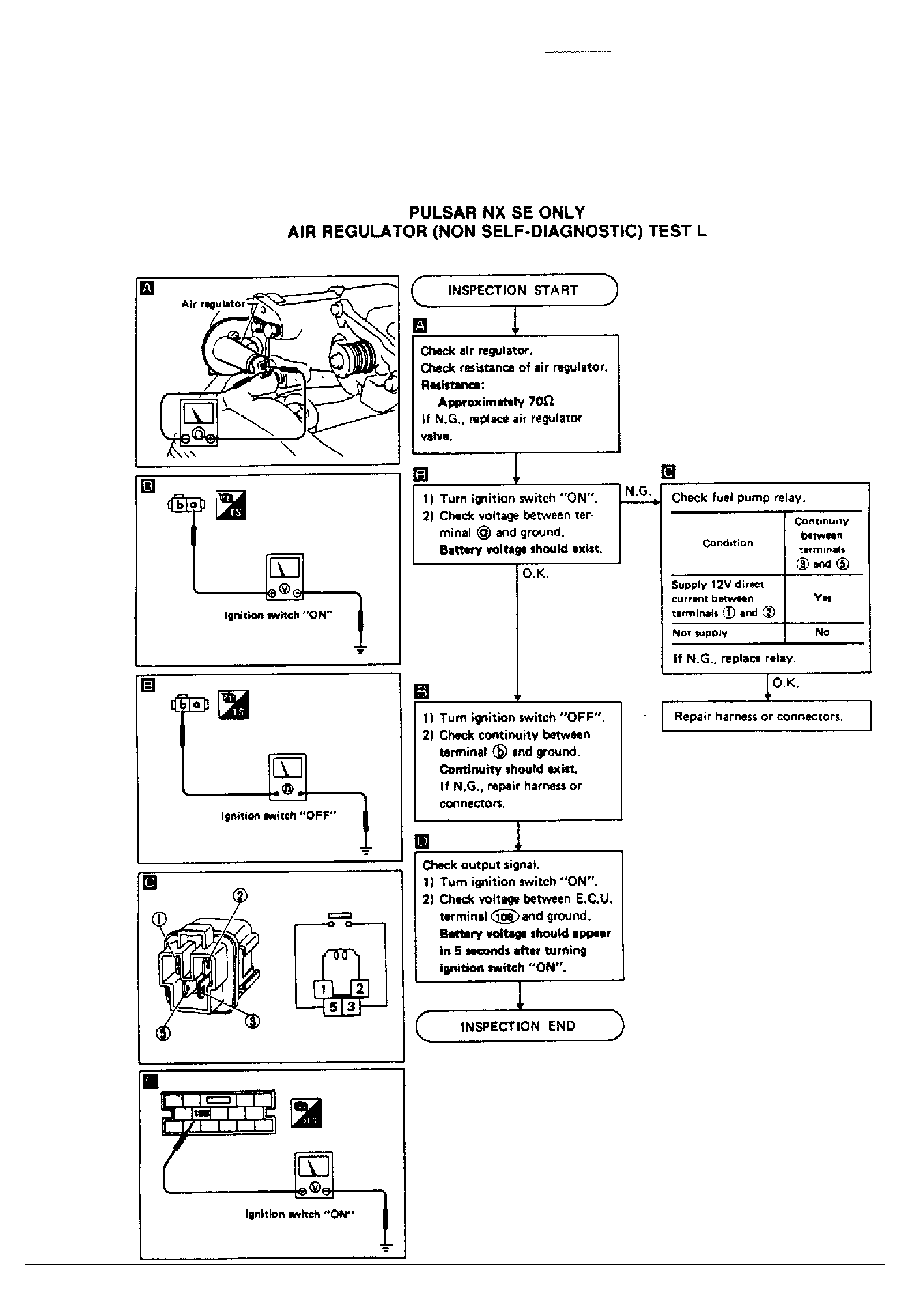

Fig 2: Test L, Pulsar NX SE

G61715

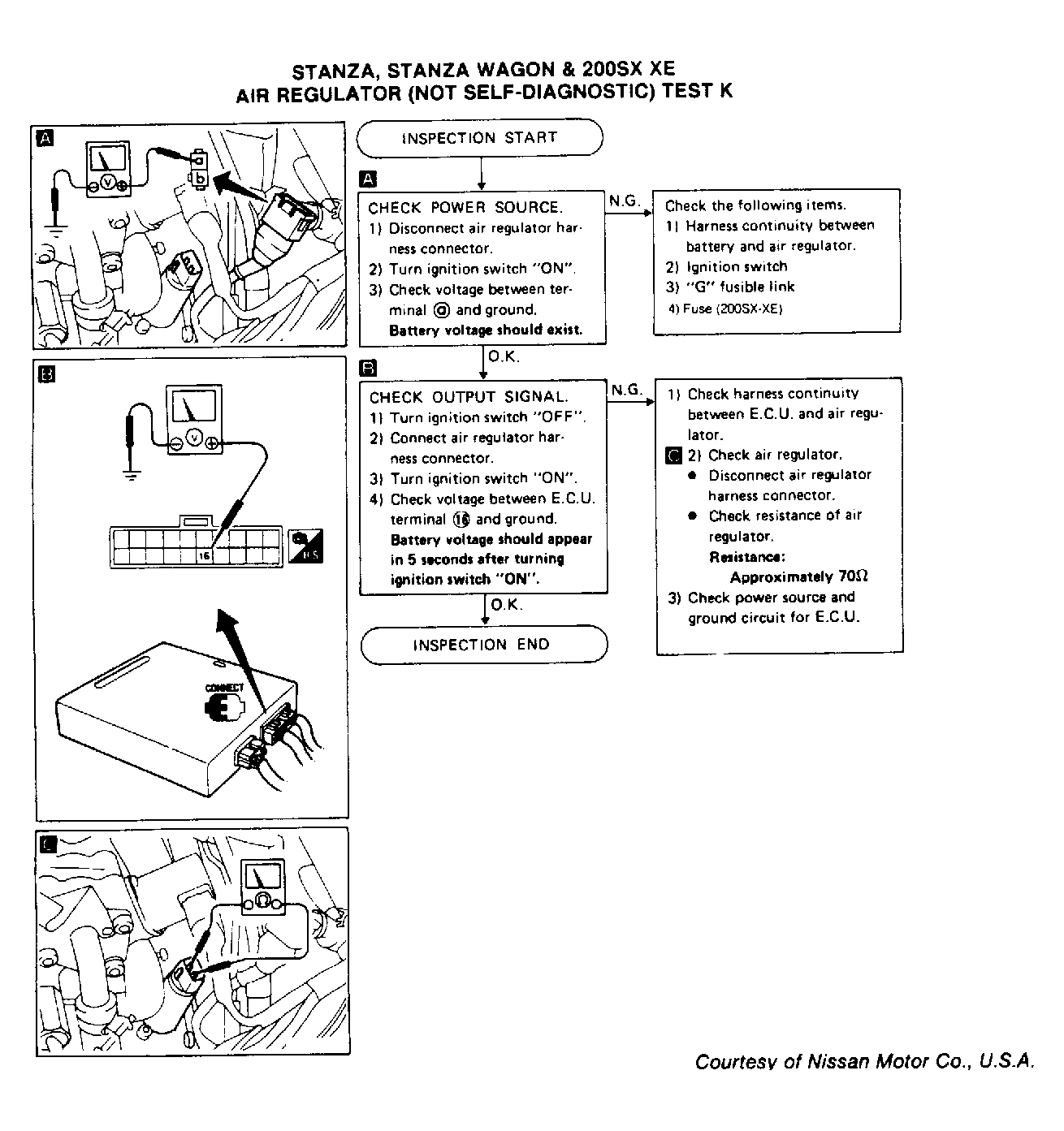

Fig 3: Test K, Stanza, Stanza Wagon & 200SX XE

G61712
