Starter - HITACHI: Overhaul

See Fig 1-Fig 3 for disassembly of alternator. To reassemble, reverse disassembly procedure. Fill rear case on reduction gear models with grease. Lightly oil pinion and all bearing surfaces.

Fig 1: Disassembled View of a Typical Hitachi Conventional Starter For Pathfinder & Pickup

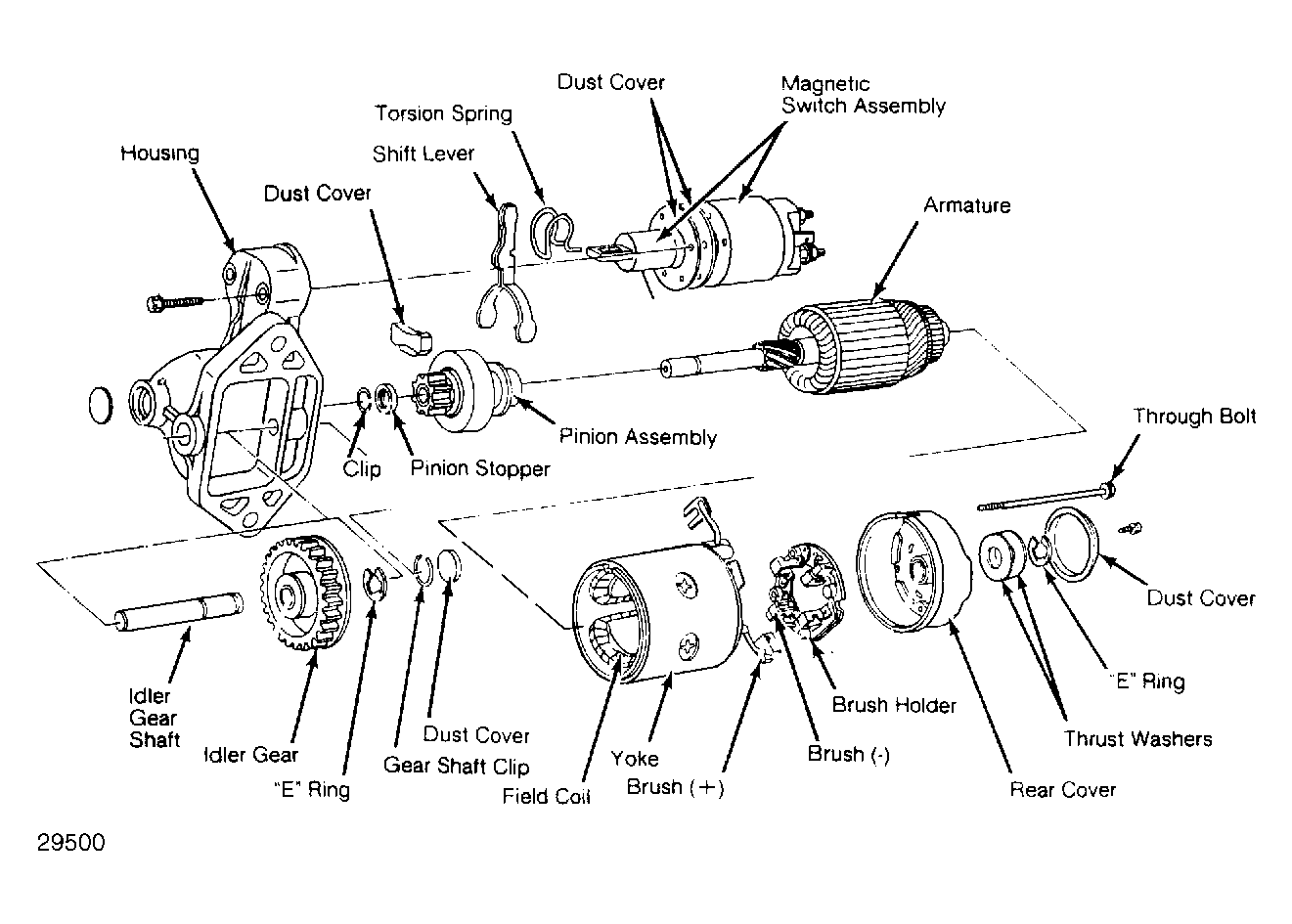

Fig 2: Disassembled View of Typical Hitachi Reduction Gear Starter for Maxima & 300ZX Mitsubishi reduction gear starters are similar.

Fig 3: Disassembled View of Hitachi Reduction Gear Starter for Sentra & Pulsar w/Automatic Transmission
