Test O, Code 42 - Throttle Position Sensor (TPS)

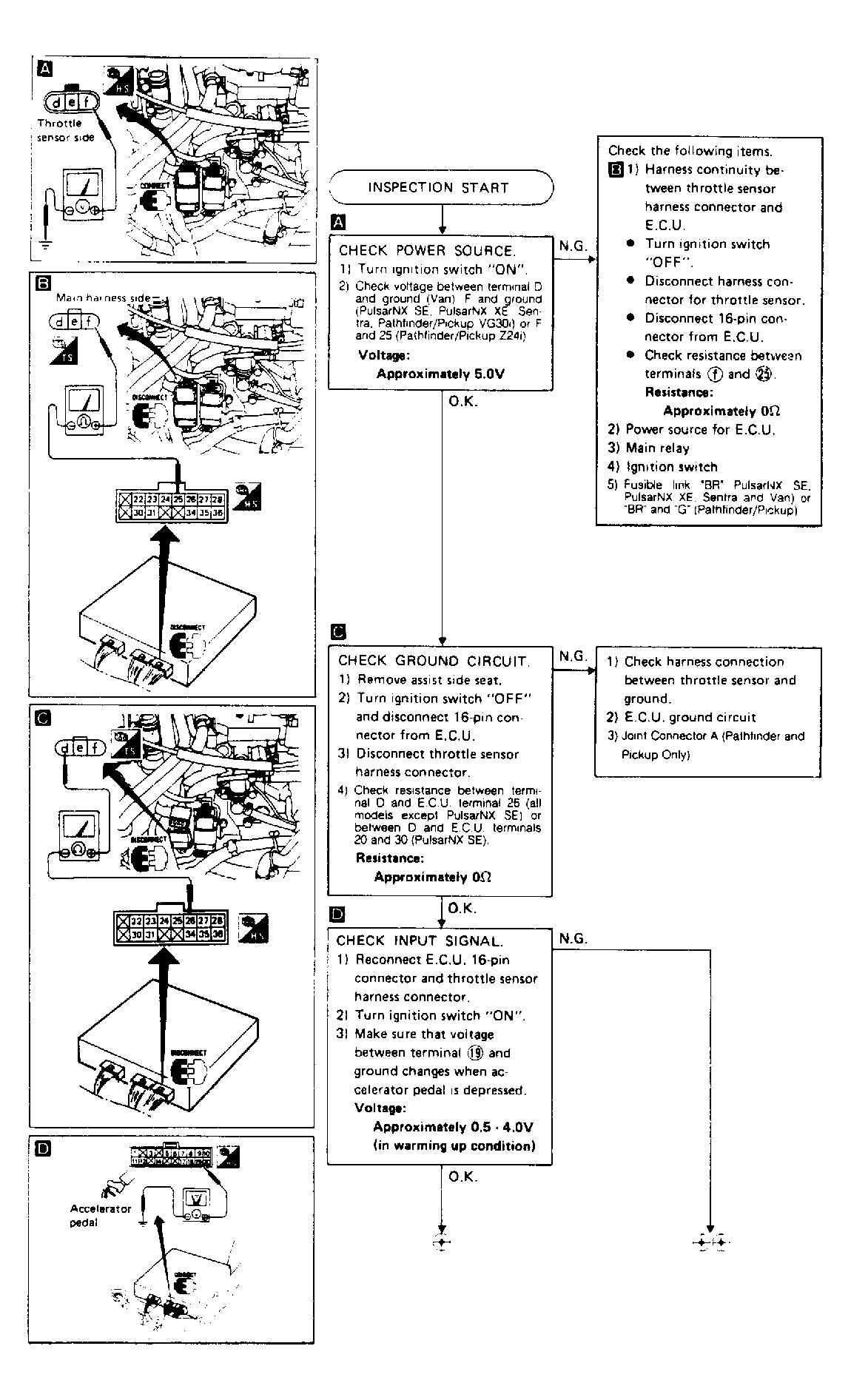

Fig 1: Throttle Position Sensor (Code 42) Test O (1 of 2)

G94991

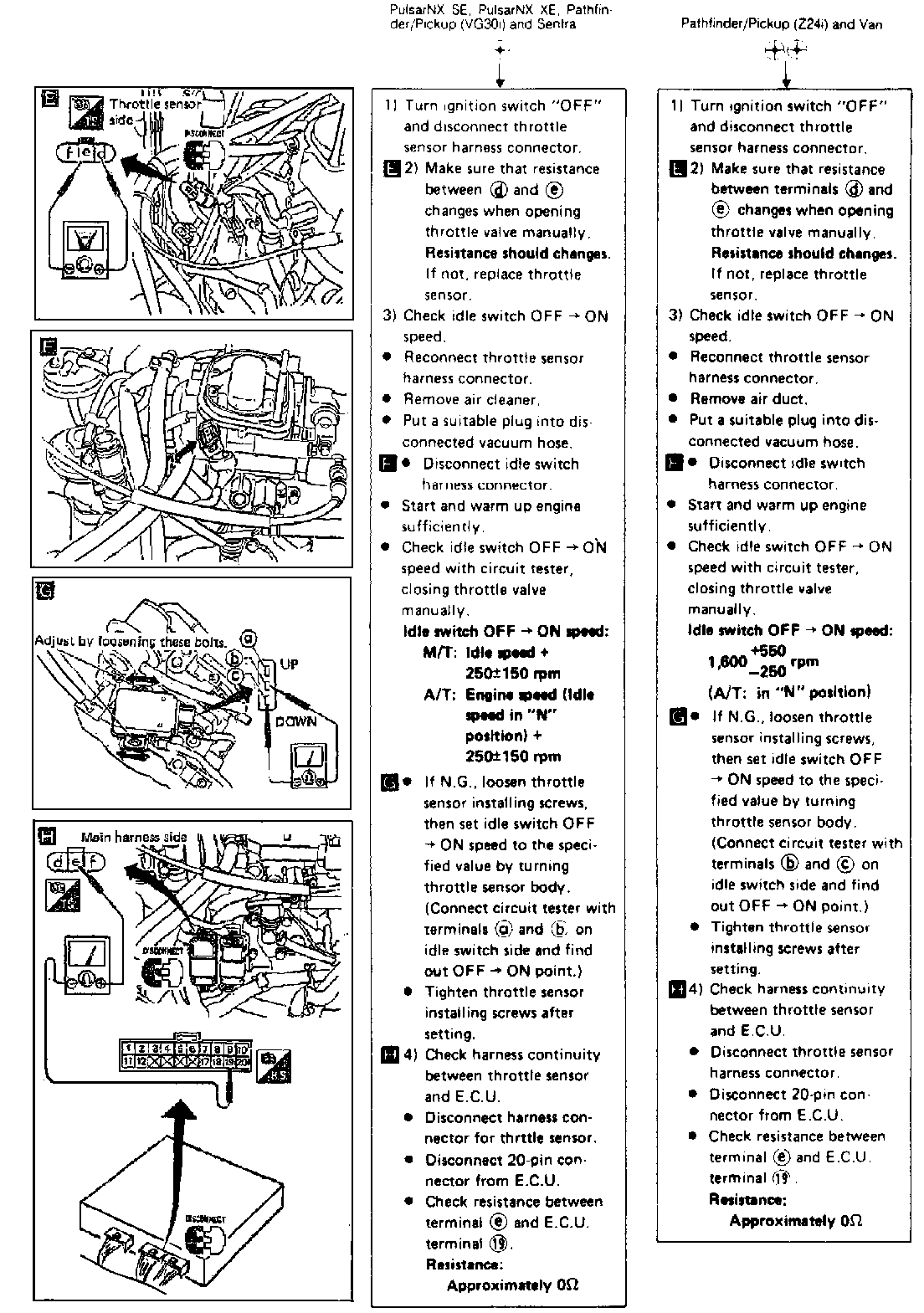

Fig 2: Throttle Position Sensor (Code 42) Test O (2 of 2)

G94992
