Test E, Code 21 - Ignition Signal/Knock Sensor
Test E, Code 21 - Ignition Signal/Knock Sensor

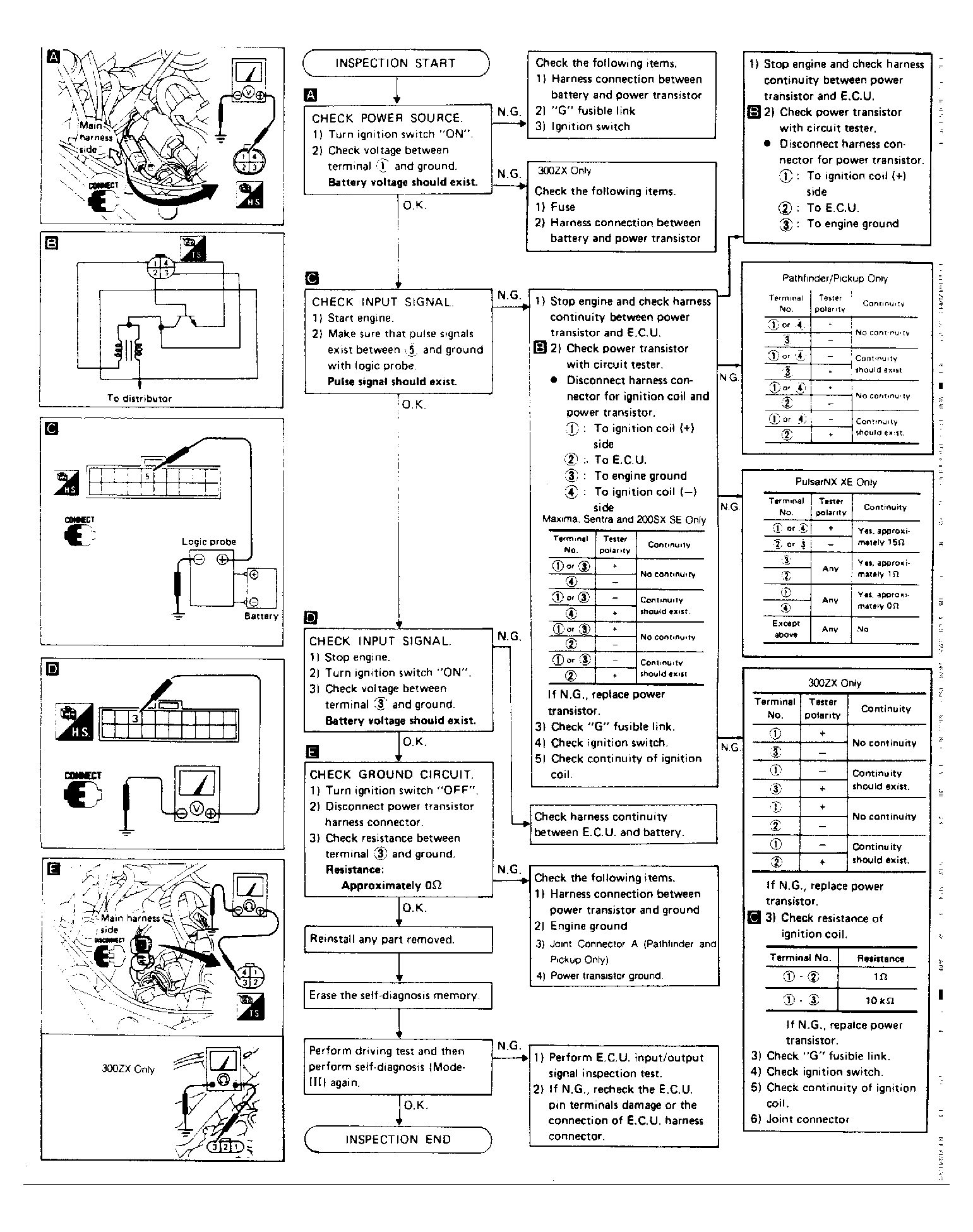

Fig 1: Ignition Signal (Code 21) Test E (VG30i)

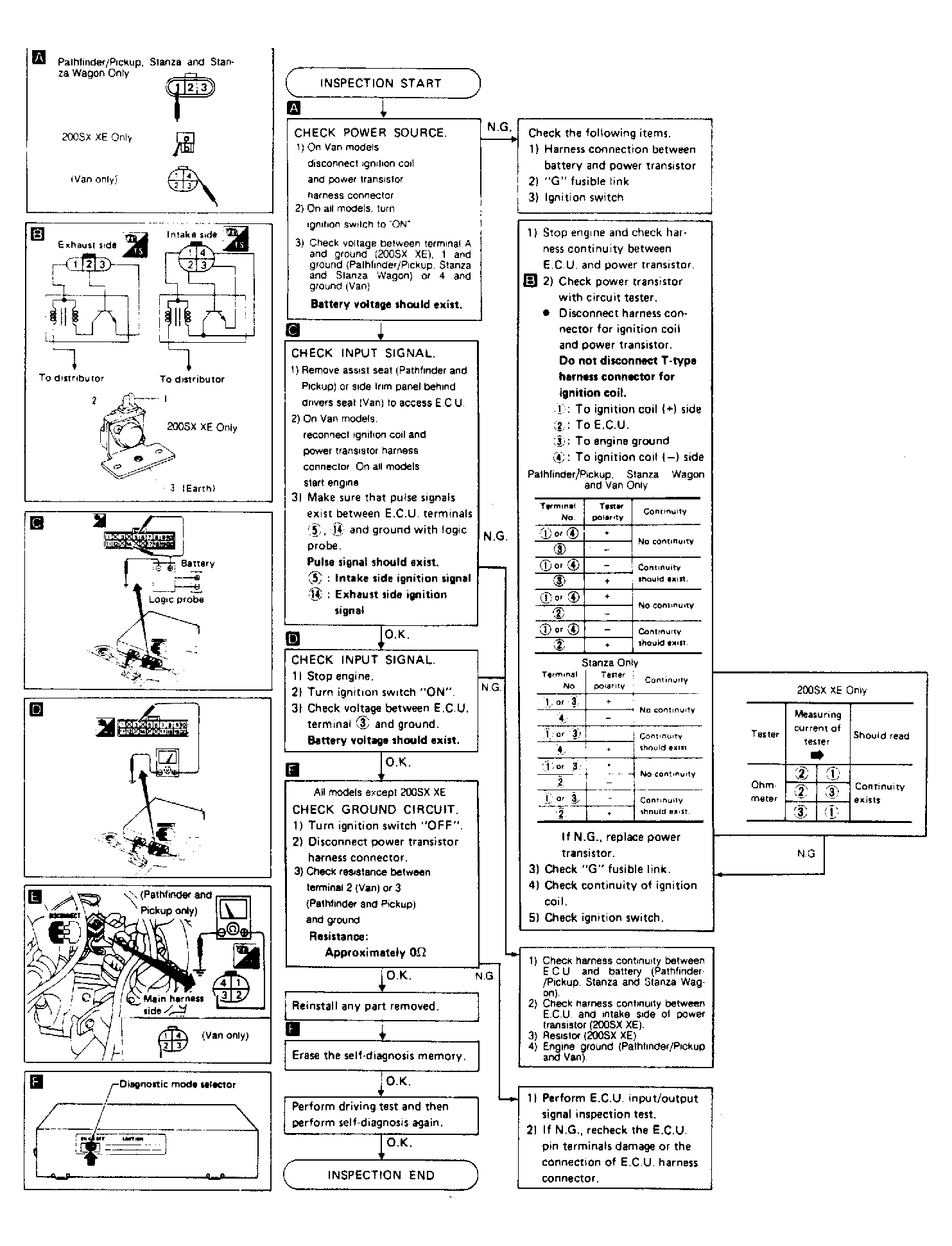

Fig 2: Ignition Signal (Code 21) Test E (Z24i)
