Test G, Code 43 - Injector
Fig 1: Injector (Code 43) Test G - VG30i

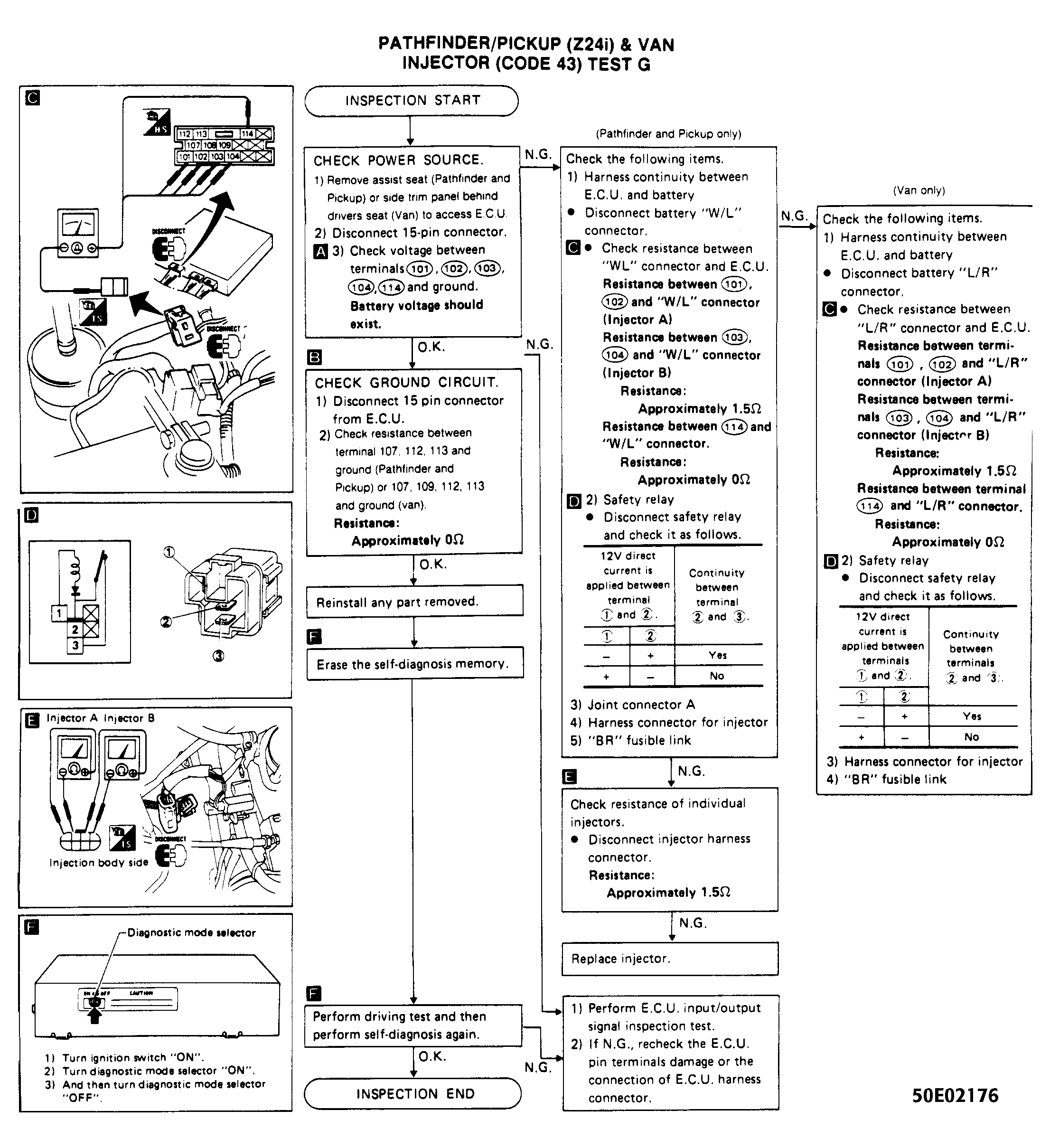

Fig 2: Injector (Code 43) Test G - Z24i
