Test C, Code 13 - Cylinder Head Temperature Sensor

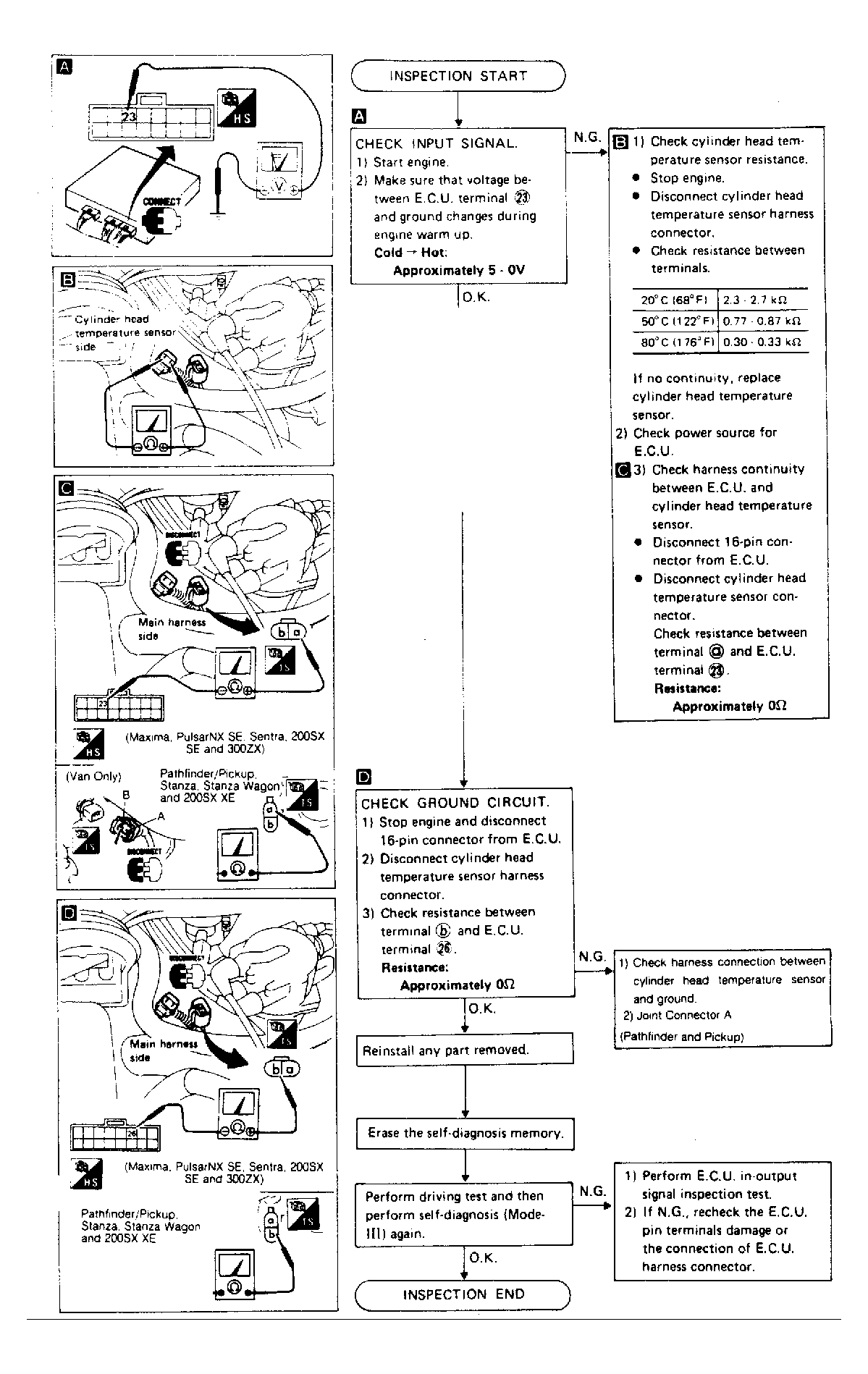

Fig 1: Cylinder Head Temperature Sensor (Code 13) Test C

G94966
