Home >> Nissan-Datsun >> 1987 >> Pathfinder E >> Repair and Diagnosis >> Engine Performance >> System >> ECC CEC System >> Diagnostic Code Charts >> Test B, Code 12 - Mass Airflow Meter

Test B, Code 12 - Mass Airflow Meter

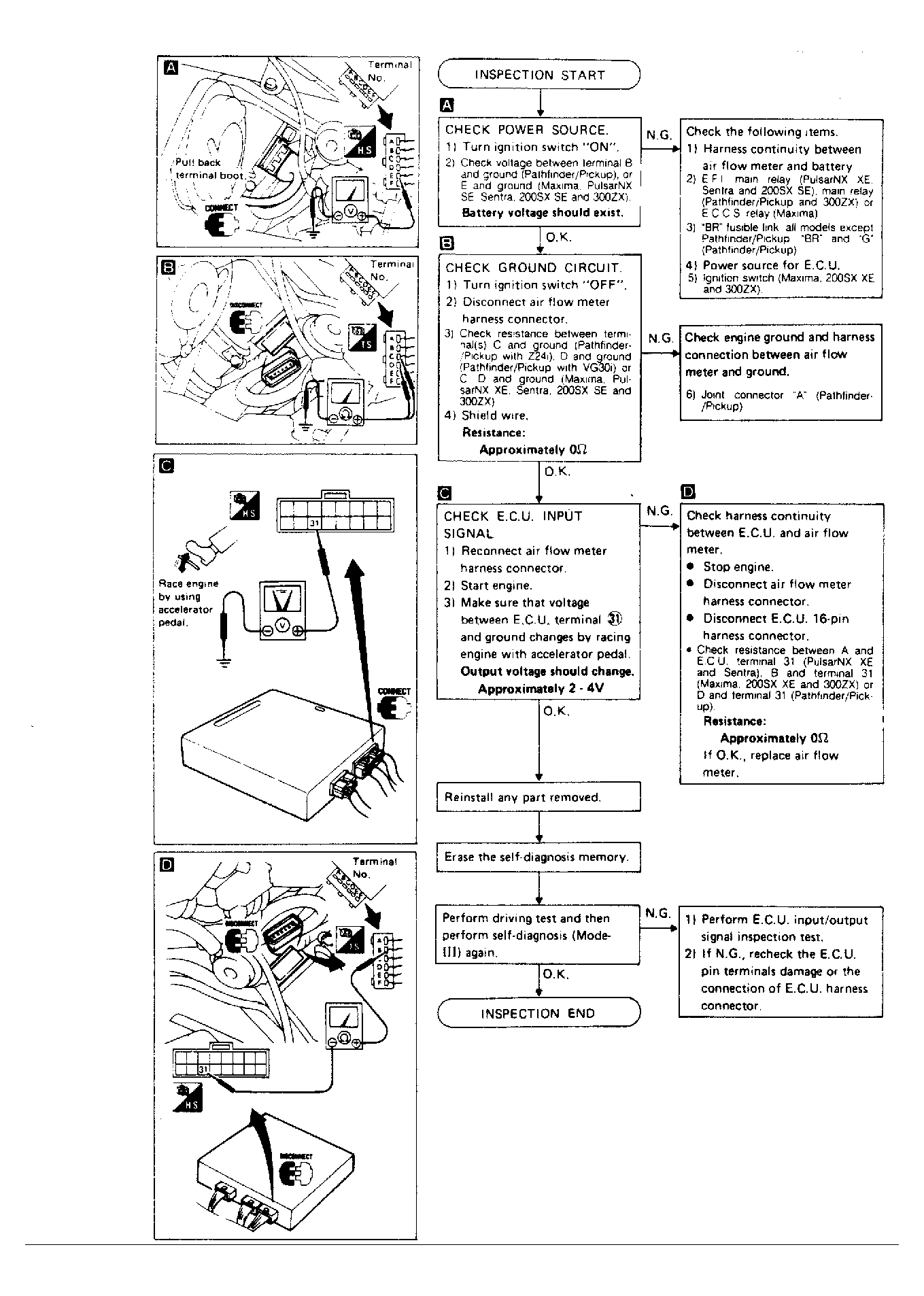

Fig 1: Mass Airflow Meter (Code 12) Test B

G94963
