Miscellaneous Components
MISCELLANEOUS COMPONENTS LOCATION
| Component | Location | |
|---|---|---|
| A/C Check Connector | Under right side of dash, on A/C evaporator housing. | |

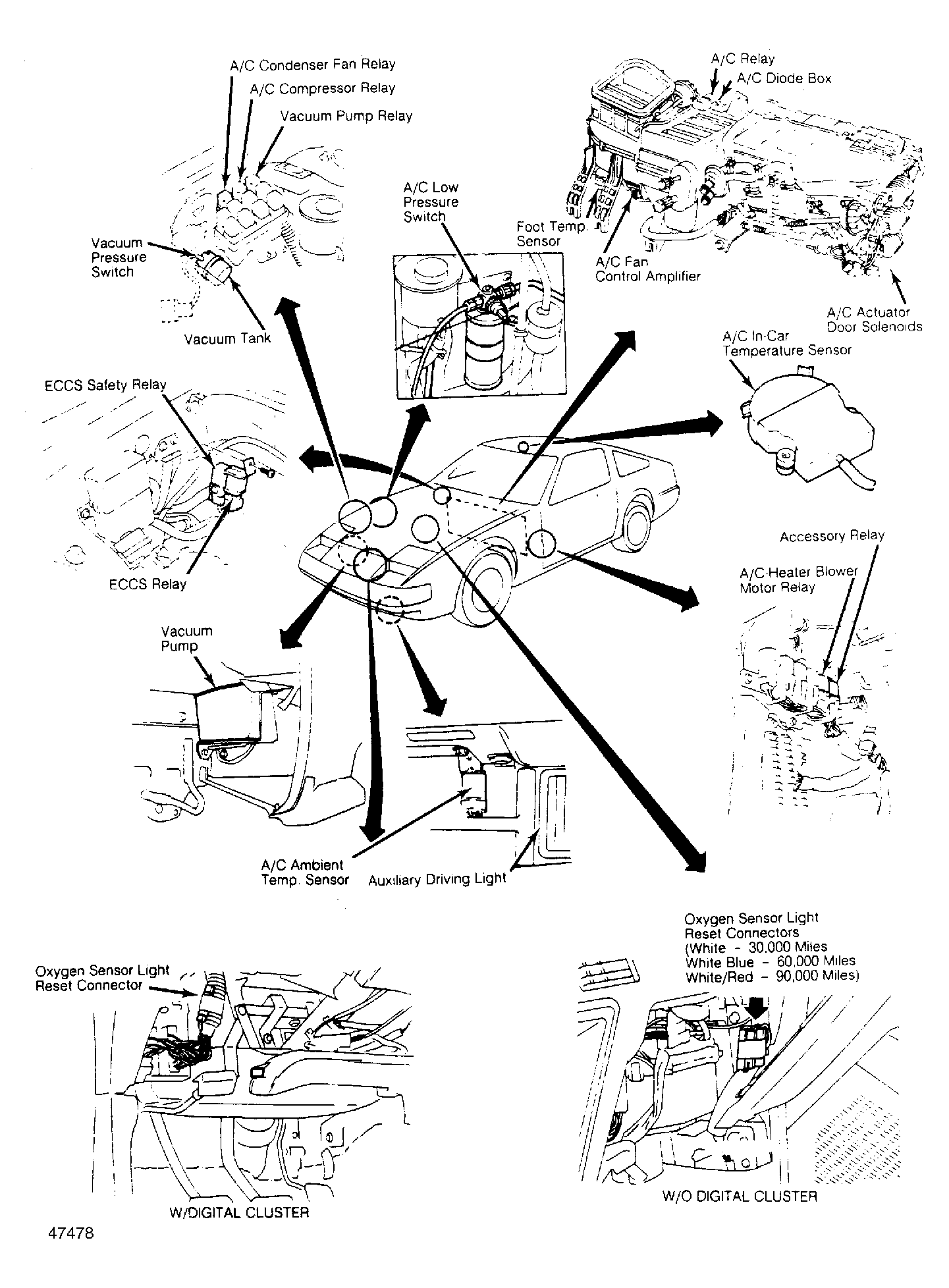

| A/C Diode Box | On top of A/C evaporator housing. See Figure . | |
| Air Regulator | On right rear side of air intake plenum. | |

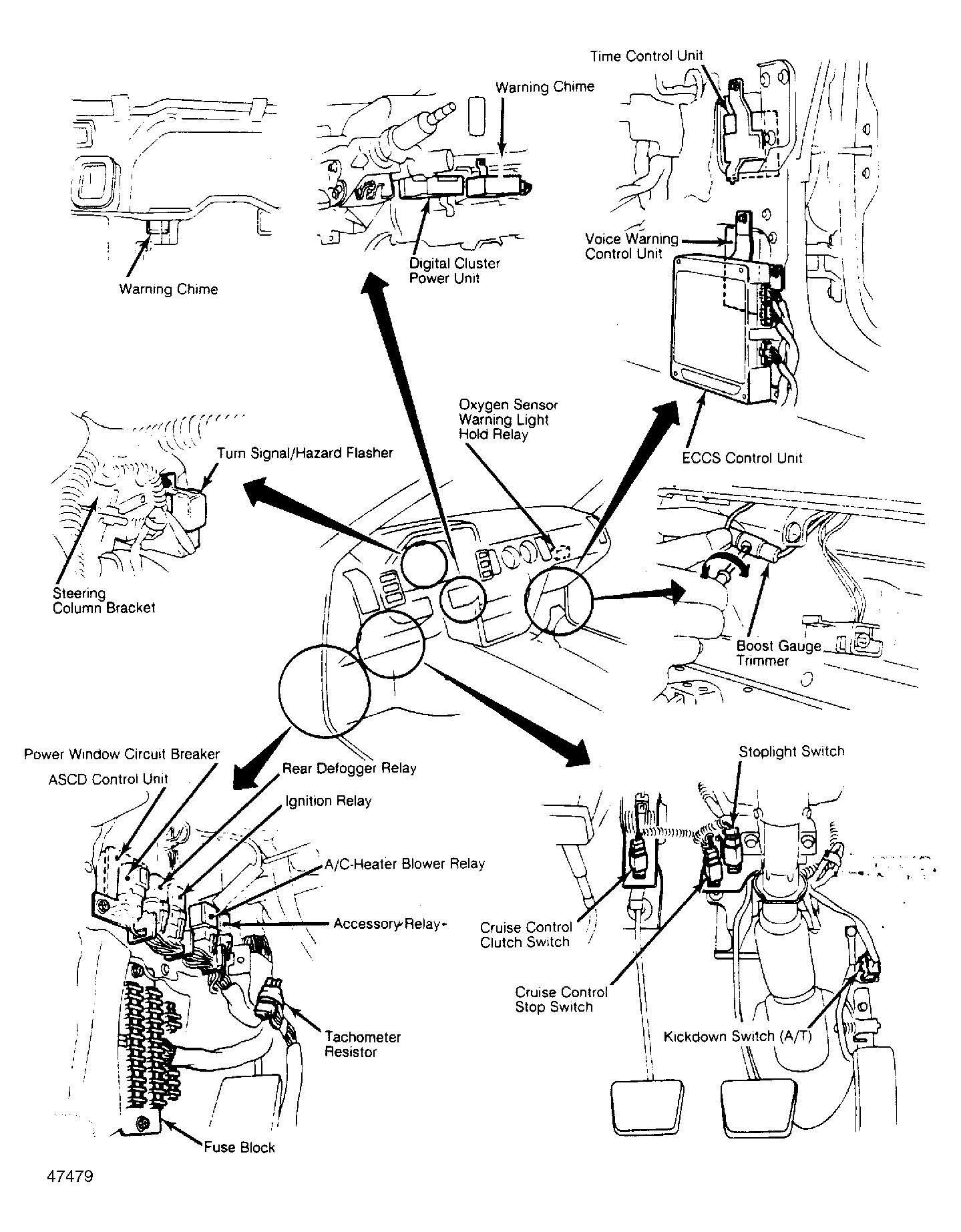

| Boost Gauge Trimmer | In upper wall of glove box. See Figure . | |

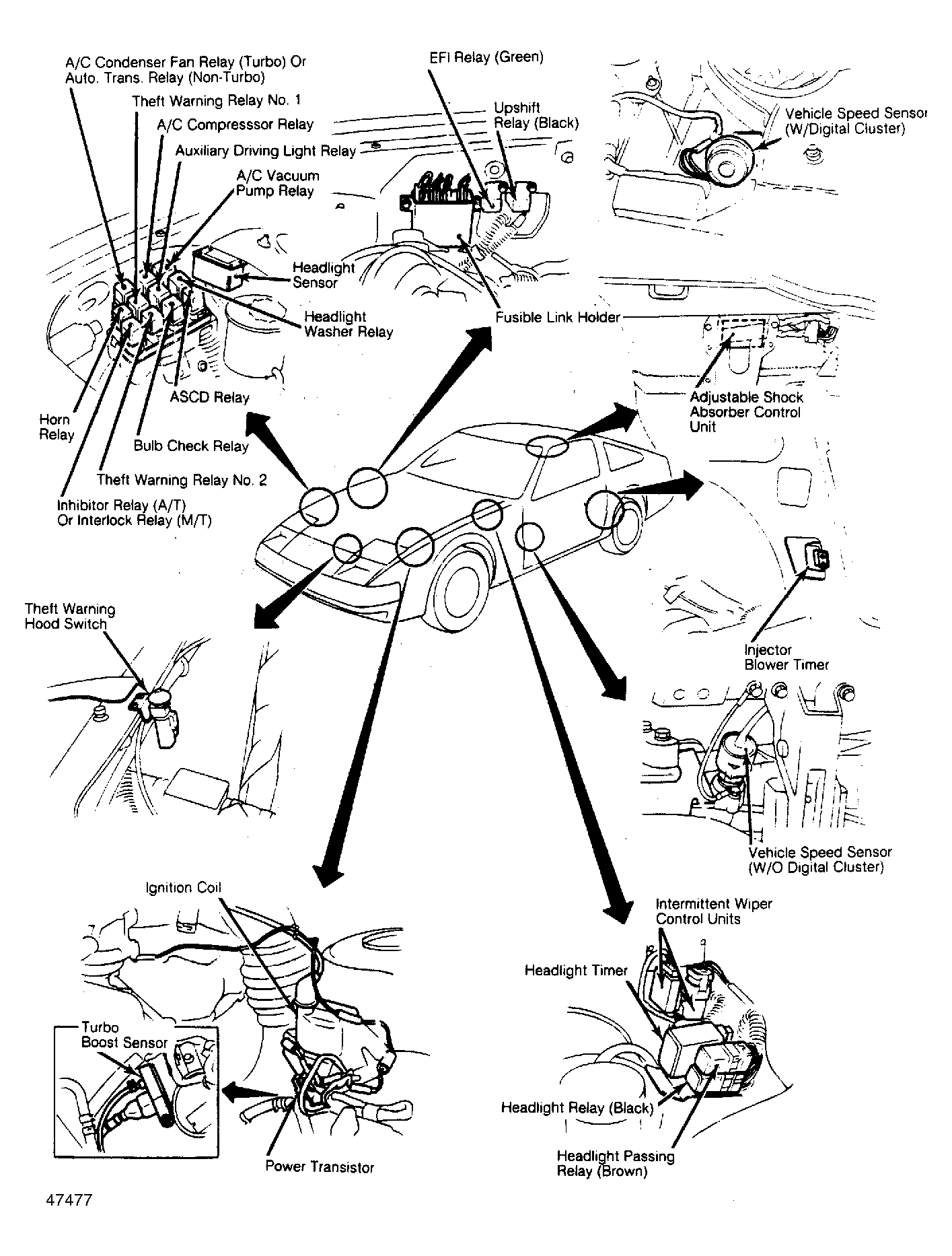

| Ignition Coil & Power Transistor | On left fender panel, on strut tower. See Figure . | |
| Oxygen Sensor Light Reset Connector | ||
| W/Digital Cluster | Under left side of dash, above hood release handle. See Figure . | |
| W/O Digital Cluster | Under right side of dash, behind and to right of glove box. See Figure . | |
| Potentiometer Balance Resistor | Under dash, on side of A/C-heater housing. | |
| Steering Wheel Switch System Receiver | Under right side of luggage compartment box. | |
| Steering Wheel Switch System Transmitter | In center of steering wheel, below horn cover and pad. | |
| Tachometer Resistor | Taped to wiring harness, above fuse block. See Figure . | |
