ECC CEC System
>>
Start Signal (Switch On/Off Diagnosis)
Start Signal (Switch On/Off Diagnosis)

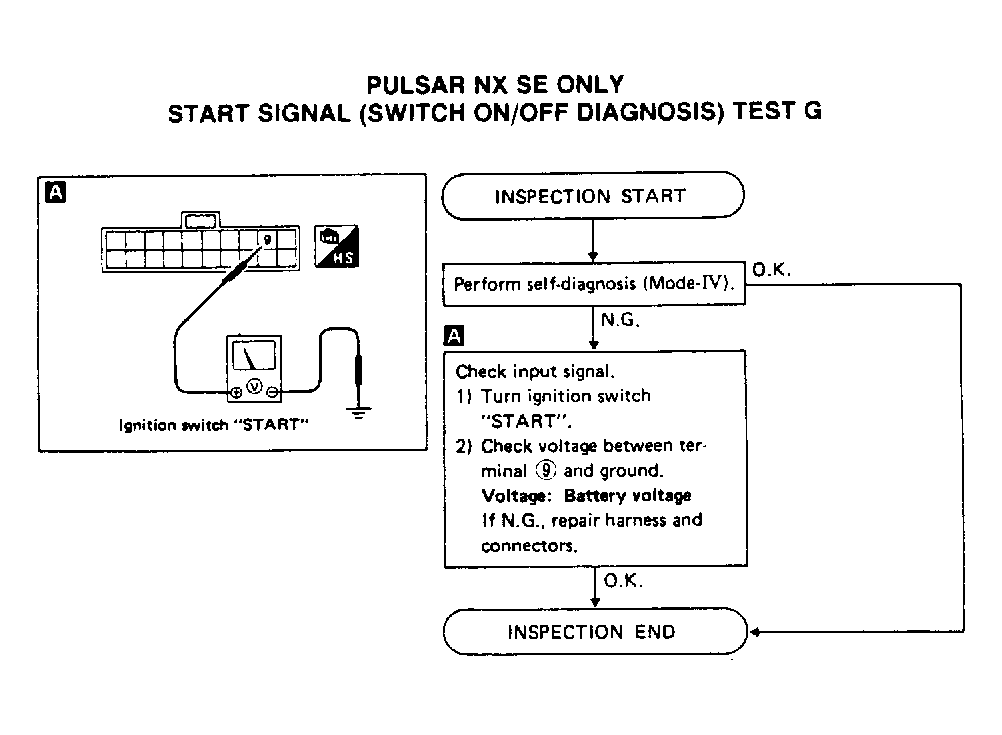

Fig 1: Test G, Pulsar NX SE

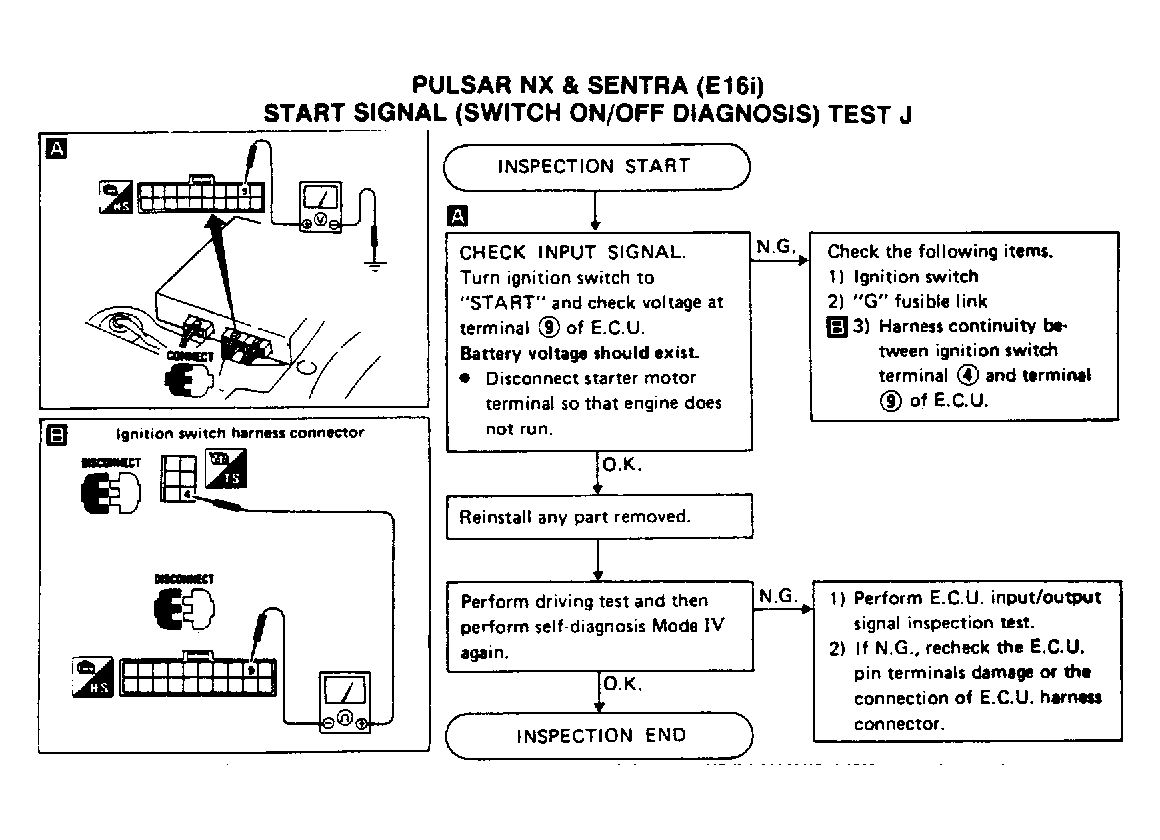

Fig 2: Test J, Pulsar NX & Sentra (E16i)
