Wiring Diagrams

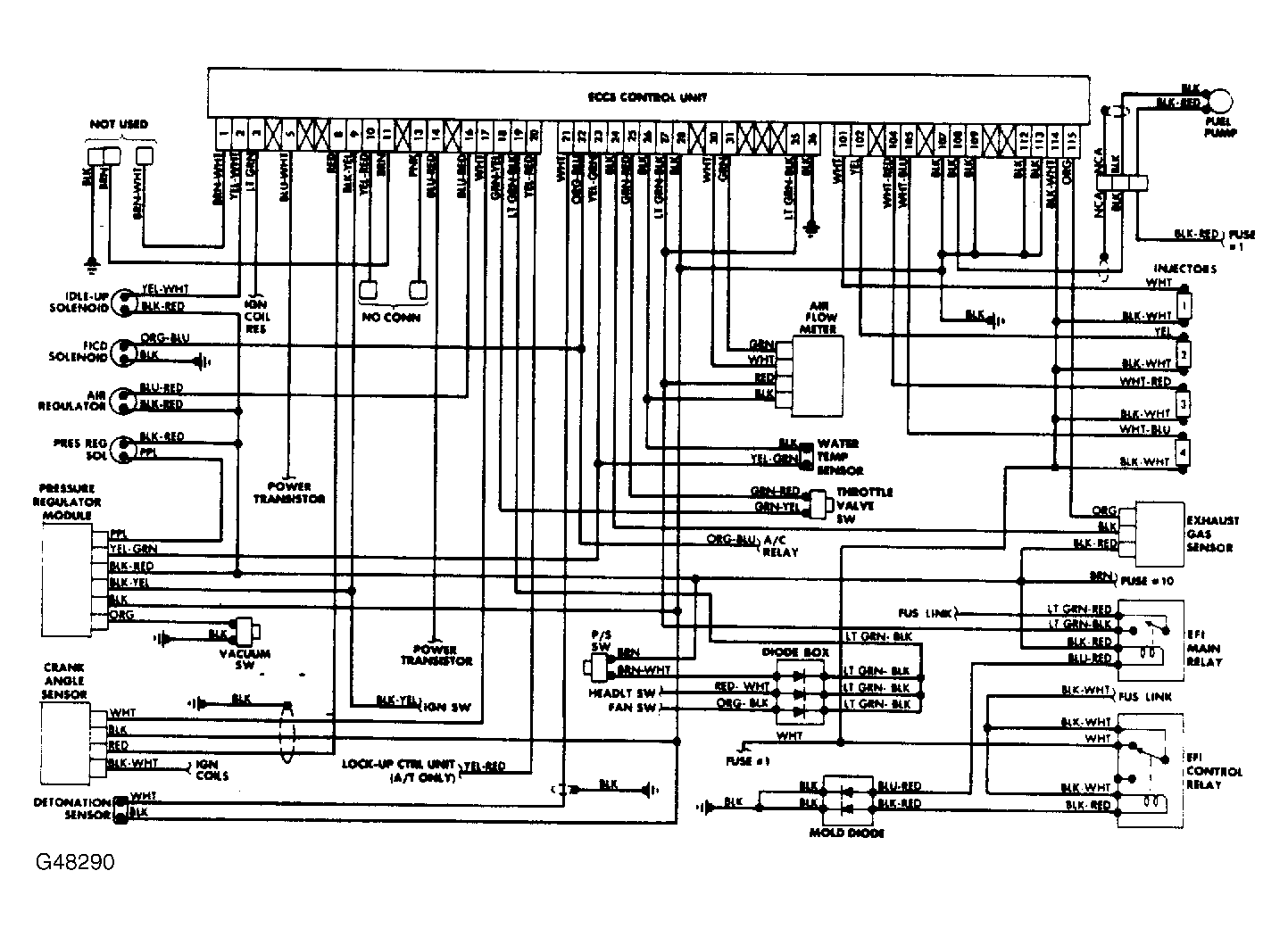

Fig 1: ECCS Wiring Diagram (Maxima)

G48290

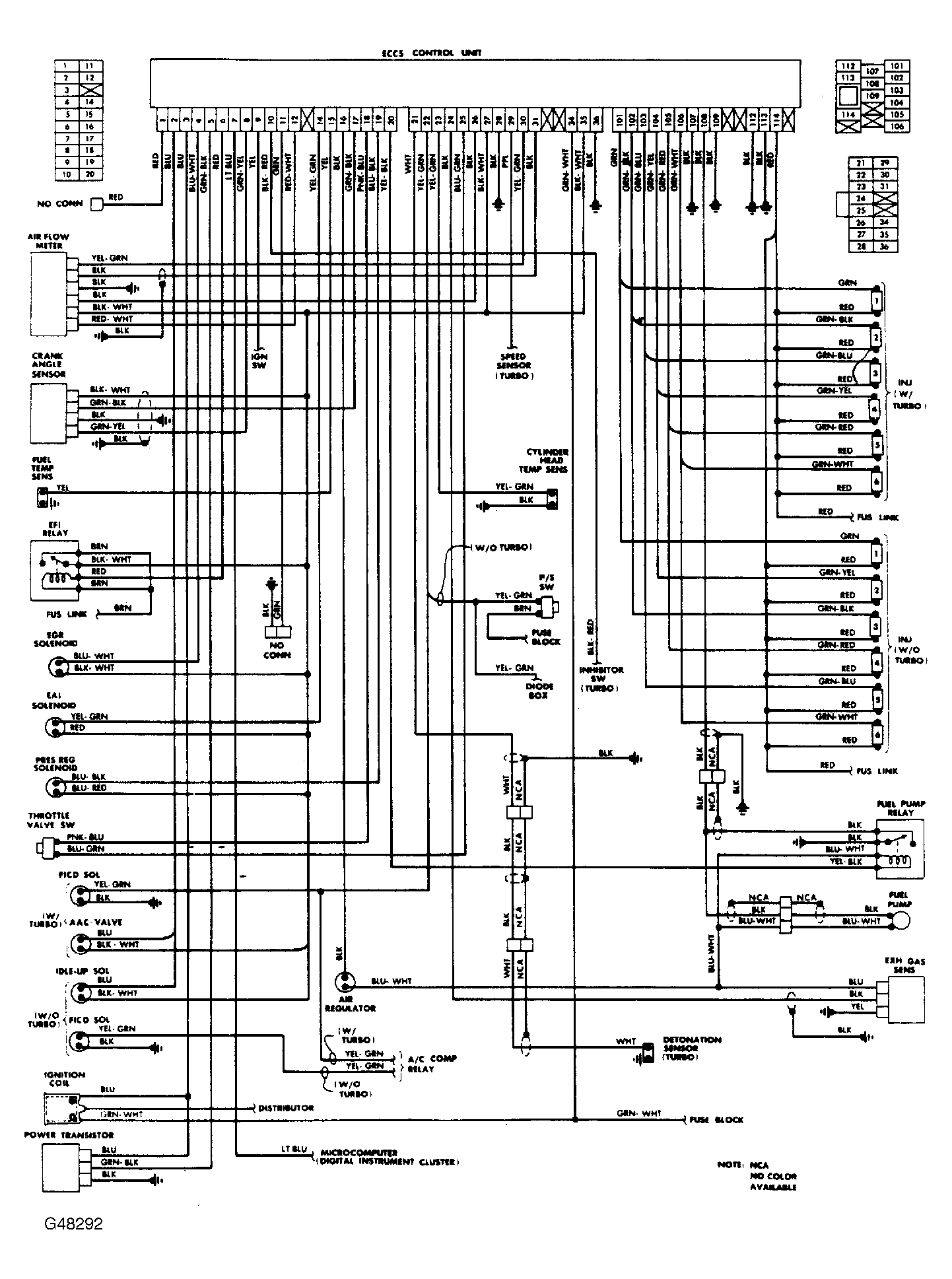

Fig 2: ECCS Wiring Diagram (300ZX & 300ZX Turbo)

G48292
