Riding Height: Pickup

Vehicle must be empty and parked on level surface. On both 2WD and 4WD, turn anchor bolt adjusting nut to obtain the specified "H" dimension. This adjustment must be made first before continuing with alignment procedures. See Fig 1 .

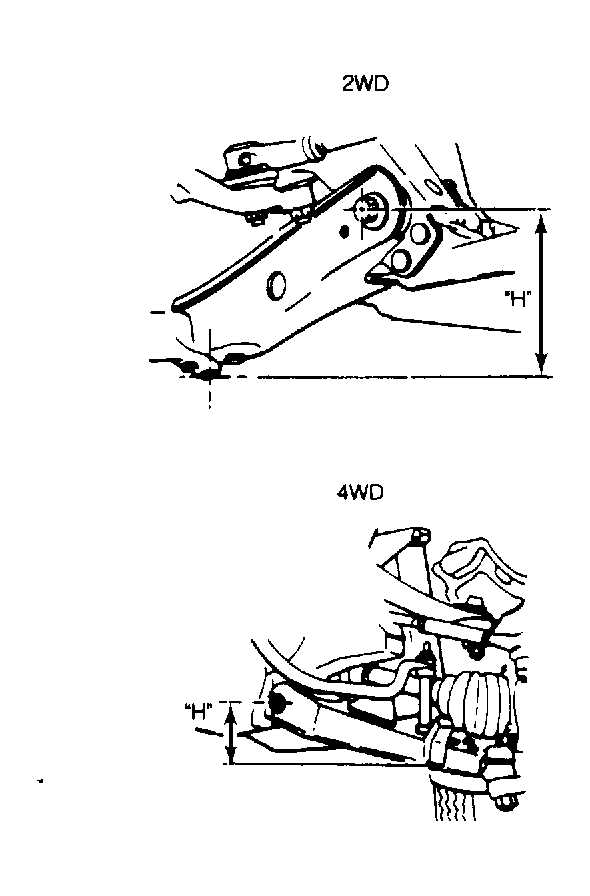

Fig 1: Front Riding Height Measurement (Pickup)
