Fuel Injection System - Diesel: Wiring Diagram

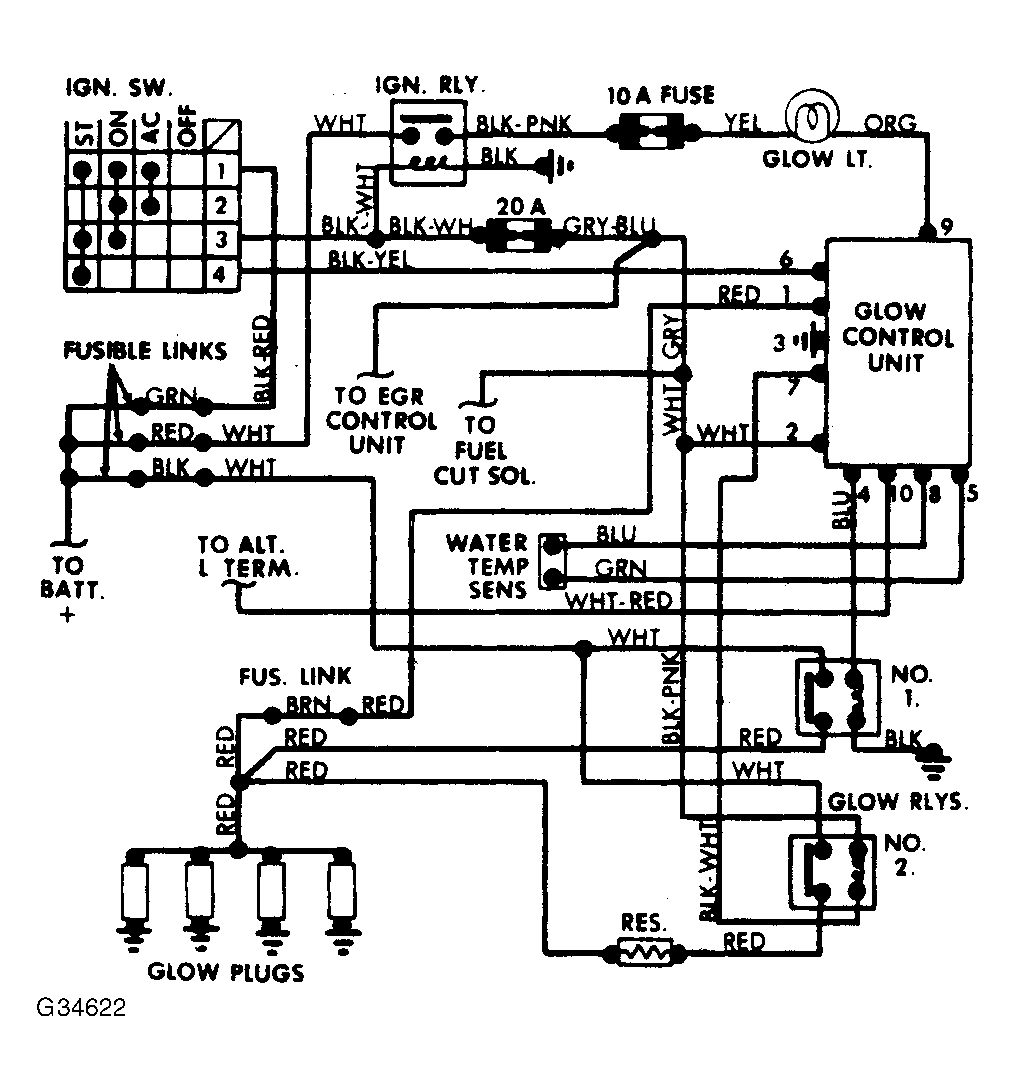

Fig 1: Sentra Glow Plug System Wiring Diagram

G34622
