Wiring Diagrams

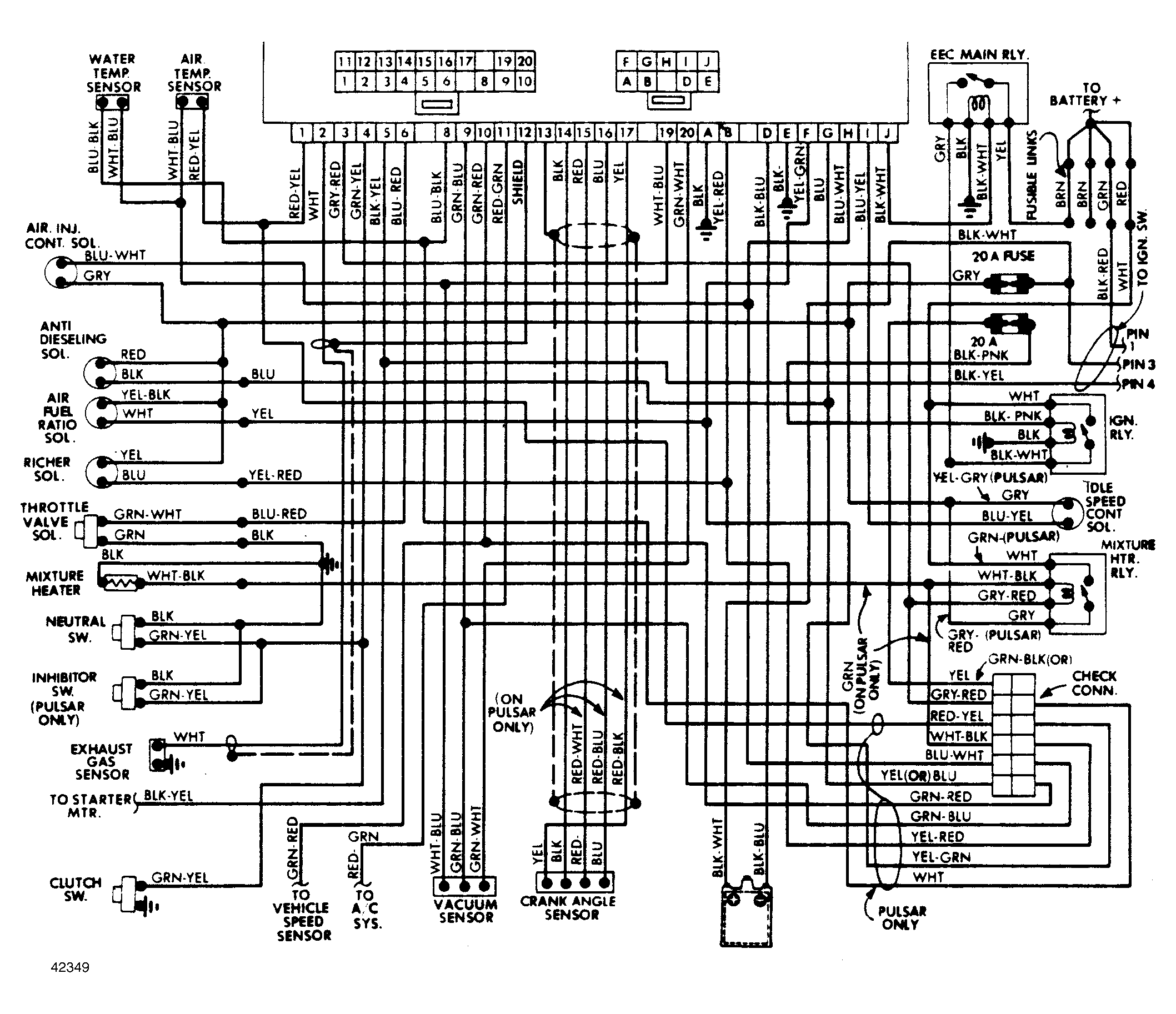

Fig 1: ECC Wiring Diagram for California Pulsar & Sentra

NOTE: The Power Transistor Wiring has been revised see Fig 3 .

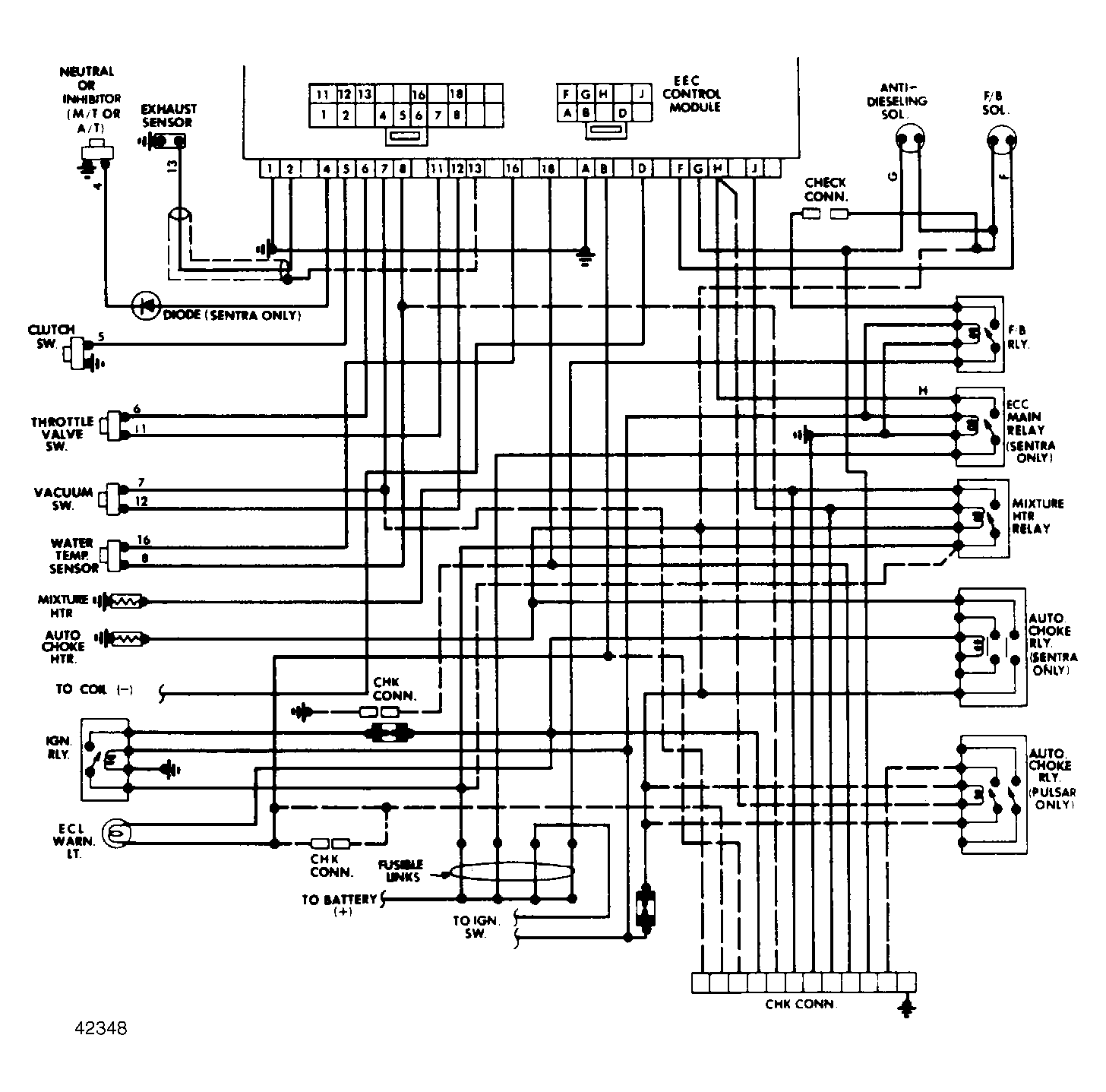

Fig 2: ECC Wiring Diagram for Federal Pulsar & Sentra

Fig 3: Wiring Diagram - Power Transistor (Federal) Pulsar & Sentra
