Door Unlock Sensor & Key Switch Continuity Test

DOOR UNLOCK SENSOR & KEY SWITCH CONTINUITY TEST

Application		Position	Continuity Between Terminals:
Door Unlock Sensor (1)
Front Door (2)		Unlock	11, 13, 21, 23 & 12, 14, 22, 24
Back Door (3)		Unlock	91 & 92
Key Switch (4)		Inserted	41 & 42
(1) In Power Door Lock Actuator. (2) For terminals, see Fig 1 . (3) For terminals, see Fig 2 . (4) For terminals, see Fig 3 .

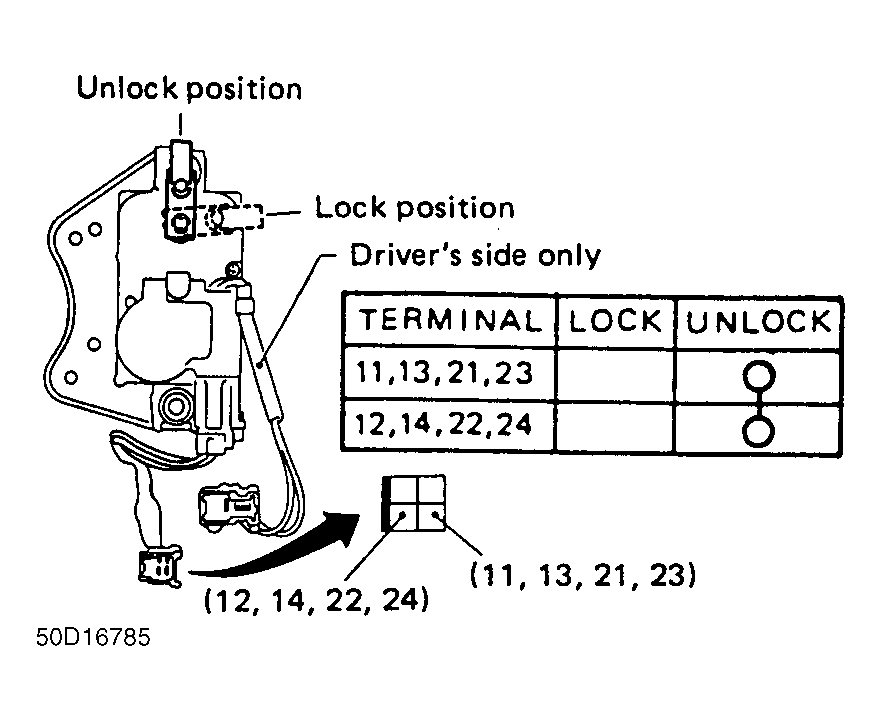

Fig 1: Front Door Unlock Sensor

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Back Door Unlock Sensor

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Back Door Unlock Sensor

Courtesy of NISSAN MOTOR CO., U.S.A.
