Feedback Carburetor System: Description

The electronically controlled carburetor improves driveability while reducing emissions. System components include ECC control unit, water temperature sensor, exhaust gas sensor, throttle valve switch, clutch switch (M/T), neutral and inhibitor switches (A/T), vacuum switch, A/C switch, and ignition coil.

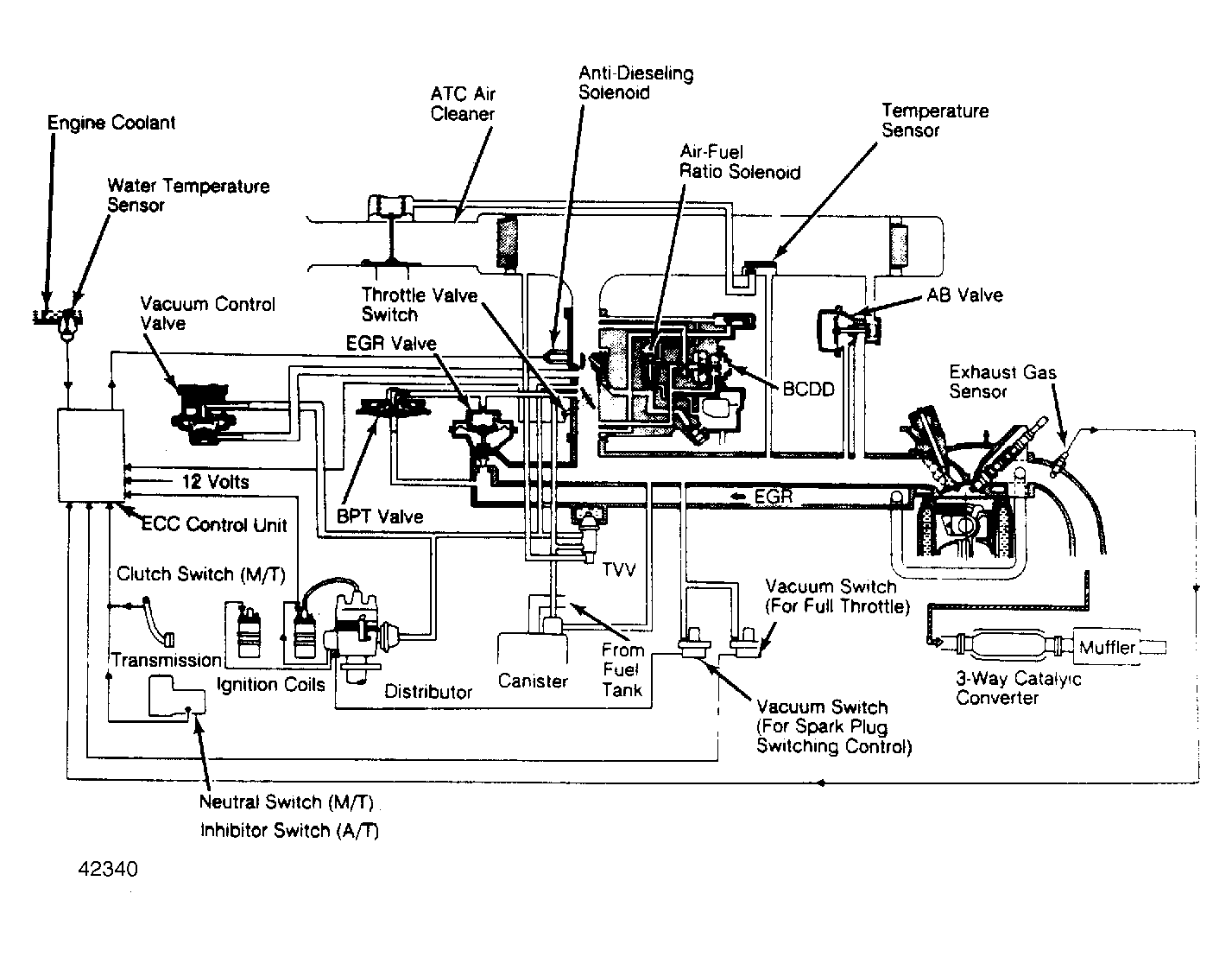

Fig 1: ECC Schematic & Vacuum Diagram for Pickup
G42340
