VENTURI Vacuum Transducer (VVT) Valve

Remove VVT valve from engine. Apply slight pressure to one port and slight vacuum to other port. If any leakage is noted, replace valve.

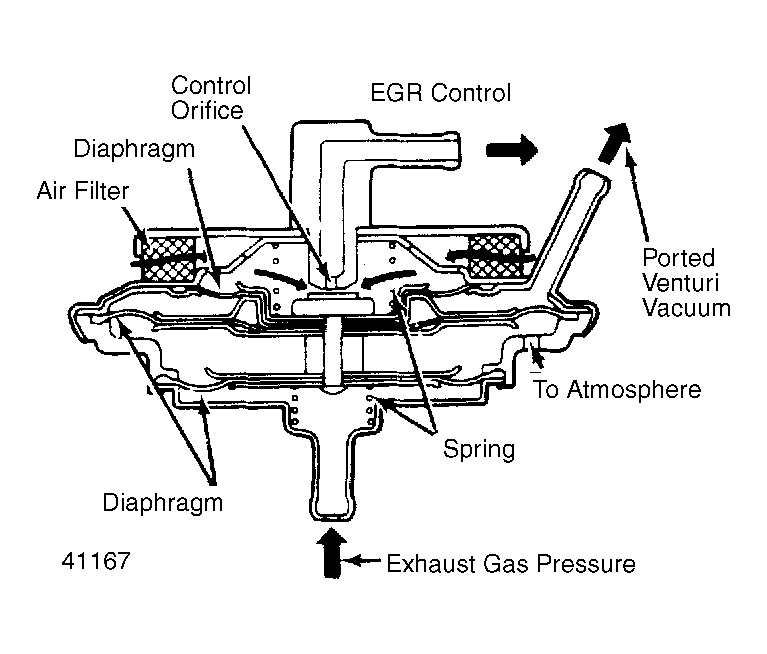

Fig 1: Venturi Vacuum Transducer (VVT) Valve (Pickup, Pulsar, Sentra & Stanza)
G41167
