Maxima & 280ZX

  1. Connect voltmeter positive lead to "C" terminal (Blue wire) of IC ignition unit connector. See Fig 2. Attach negative lead to side of distributor. Turn ignition switch "ON".

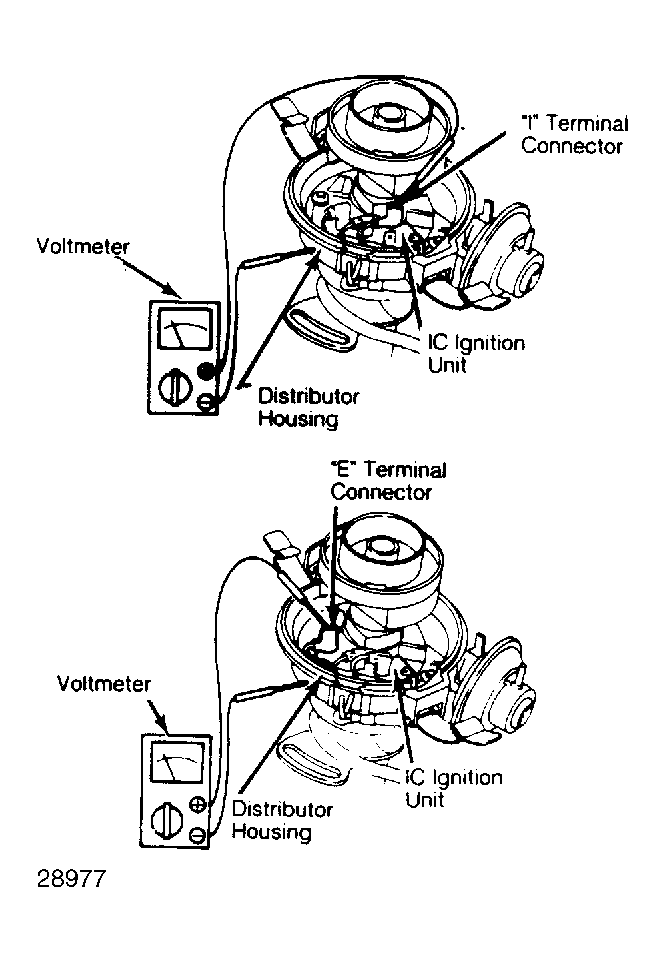

    Fig 1: Voltmeter Hookup for Ignition Primary Circuit Check Hookup is for Pulsar and Sentra)
    G28977

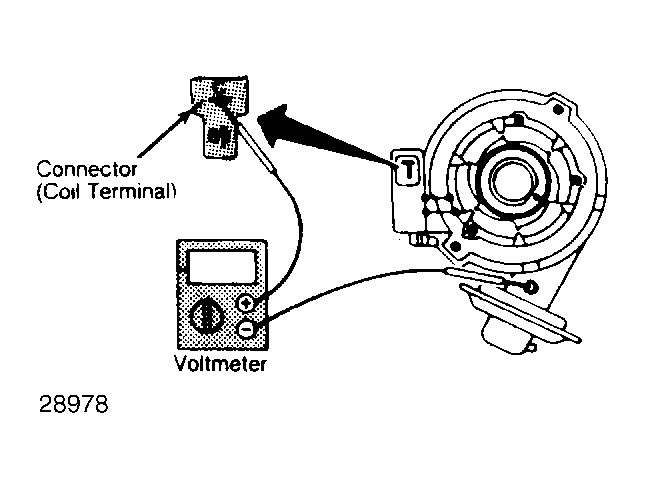

    Fig 2: Voltmeter Hookup for Ignition Primary Circuit Check Hookup is for Maxima & 280ZX models.
    G28978
  2. If voltage is 11.5-12.5 volts, check ground circuit. See IC Ignition Unit Ground Circuit Test. If voltage reading is below 11.5 volts, check Coil Primary Resistance, if not previously done.
