Wiper System

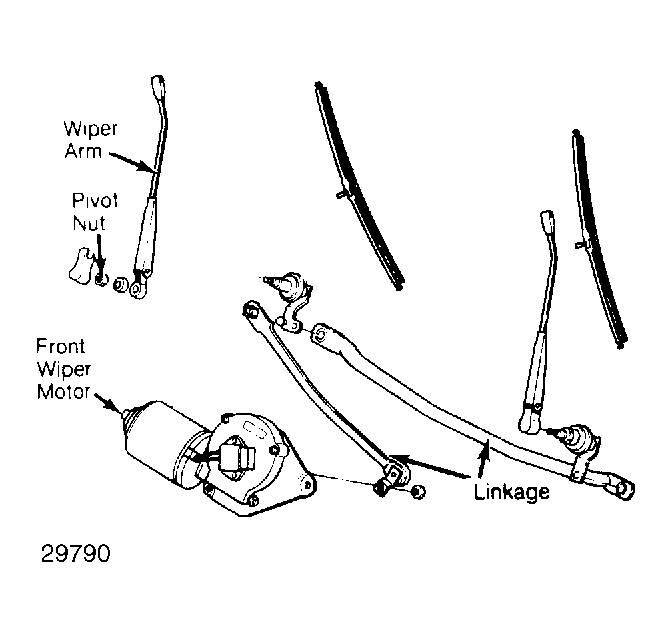

WIPER SYSTEM COMPONENT LOCATIONS - MAXIMA
| Component | Connector Type | Component Location |
|---|---|---|
| Accessory Relay | 4-Pin | Front outside corner of relay bracket |
| Time Control Unit | 8 & 11-Pin | Right kick panel at top |
| Wiper Relay | 5-Pin | Rear outside corner of relay bracket at right front corner of engine compartment |
WIPER SYSTEM COMPONENT LOCATIONS - PICKUP
| Component | Connector Type | Component Location |
|---|---|---|
| Intermittent Amplifier | 5-Pin | Steering column bracket |
WIPER SYSTEM COMPONENT LOCATIONS - PULSAR
| Component | Connector Type | Component Location |
|---|---|---|
| Intermittent Amplifier | 7-Pin | Firewall next to wiper motor |
| Rear Wiper/Washer Motor | 4-Pin | Right rear of panel in hatch area |
WIPER SYSTEM COMPONENT LOCATIONS - SENTRA
| Component | Connector Type | Component Location |
|---|---|---|
| Intermittent Amplifier | 6 & 7-Pin | On firewall, behind left front shock tower |
WIPER SYSTEM COMPONENT LOCATIONS - STANZA
| Component | Connector Type | Component Location |
|---|---|---|
| Intermittent Amplifier | 7-Pin | On firewall, behind left front shock tower |
| Circuit Breaker | Top of wiper motor plug connector | |
WIPER SYSTEM COMPONENT LOCATIONS - 200SX
| Component | Connector Type | Component Location |
|---|---|---|
| Circuit Breaker | 2-Pin | On wiper motor connector on cowl |
| Intermittent Amplifier | 8-Pin | Rear of relay bracket at right front corner of engine compartment |
| Ign./Acc. Relay | 6 & 1-Pin | Right kick panel |
| Rear Washer Motor | 2-Pin | Right front shock tower |
WIPER SYSTEM COMPONENT LOCATIONS - 280ZX
| Component | Connector Type | Component Location |
|---|---|---|
| Intermittent Amplifier | 6-Pin | Brake pedal bracket |
| Accessory Relay | 5-Pin | Right kick panel, top rear |
| Rear Washer Motor | 2-Pin | Left front shock tower |
