Vacuum Switch (Pulsar and Sentra)

  1. Disconnect vacuum hose and vacuum switch connector. Using vacuum pump, apply 23 in. Hg to vacuum hose. Check that there is continuity between C and NC and no continuity between C and NO. See Fig 1 .

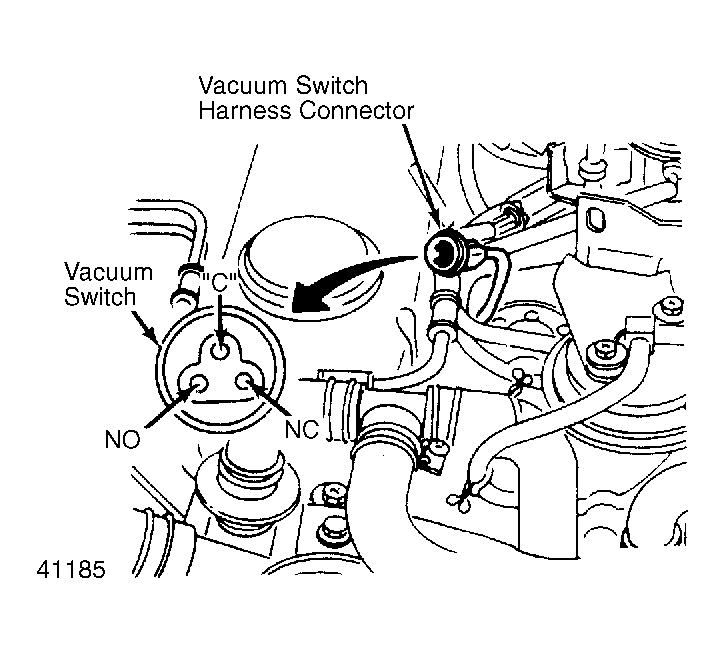

    Fig 1: Vacuum Switch Test Connections (Pulsar & Sentra)
    G41185
  2. Disconnect vacuum pump. Check that there is continuity between C and NO and no continuity between C and NC. Reconnect hose and connector to original locations.
