Miscellaneous Components
MISCELLANEOUS COMPONENTS LOCATION
| Component | Location |
|---|---|
| A/C-Heater Blower Motor Resistor | Under dash, center section. |
| Check Connector | Under dash, right side. See Figure . |
| Fuse Block | Under dash, left side. See Figure . |
| Fusible Links | Near battery. |

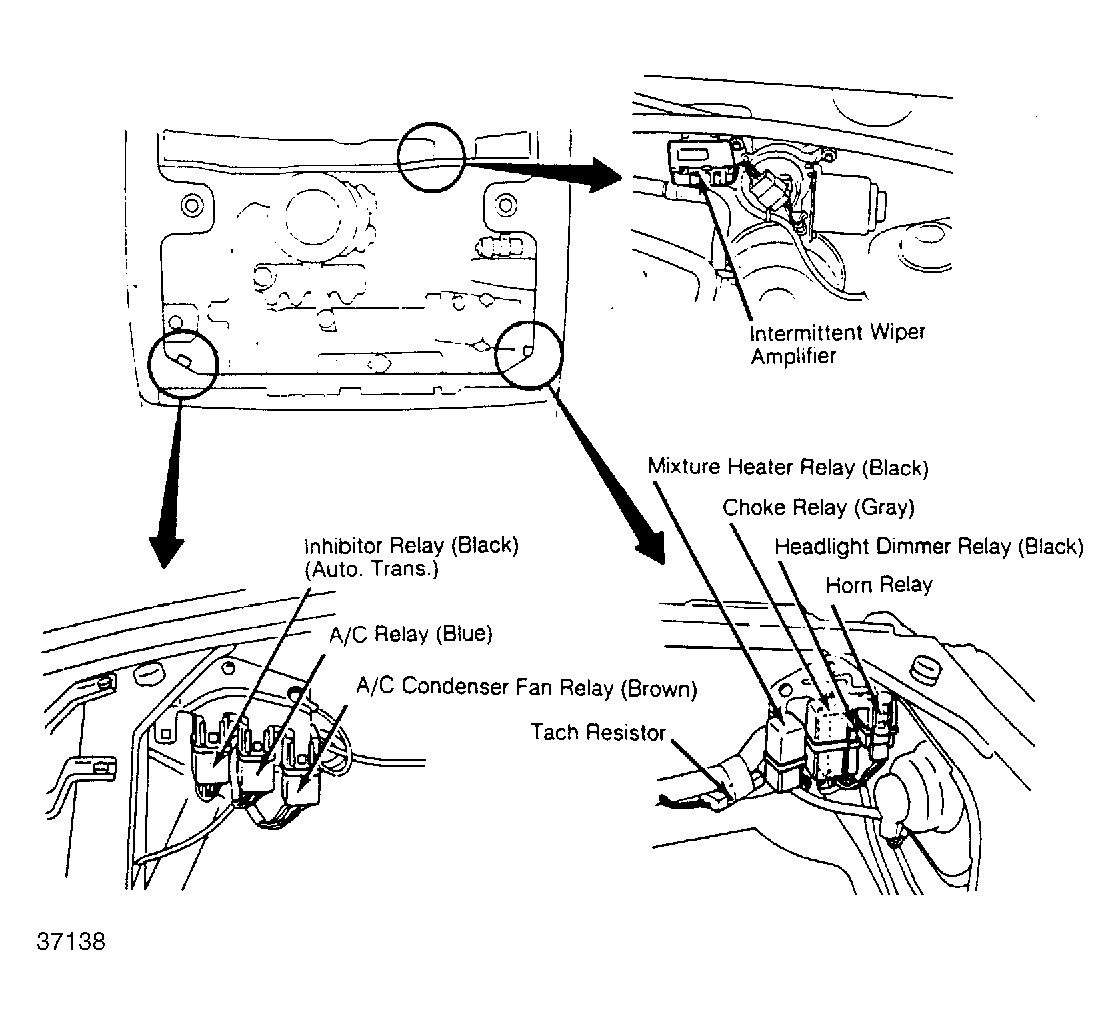

| Intermittent Wiper Amplifier | On firewall, left side. See Figure . |
| Tach Resistor | On left front corner of engine compartment. See Figure . |
| Warning Chime | Behind dash, center section. See Figure . |
