Control Units

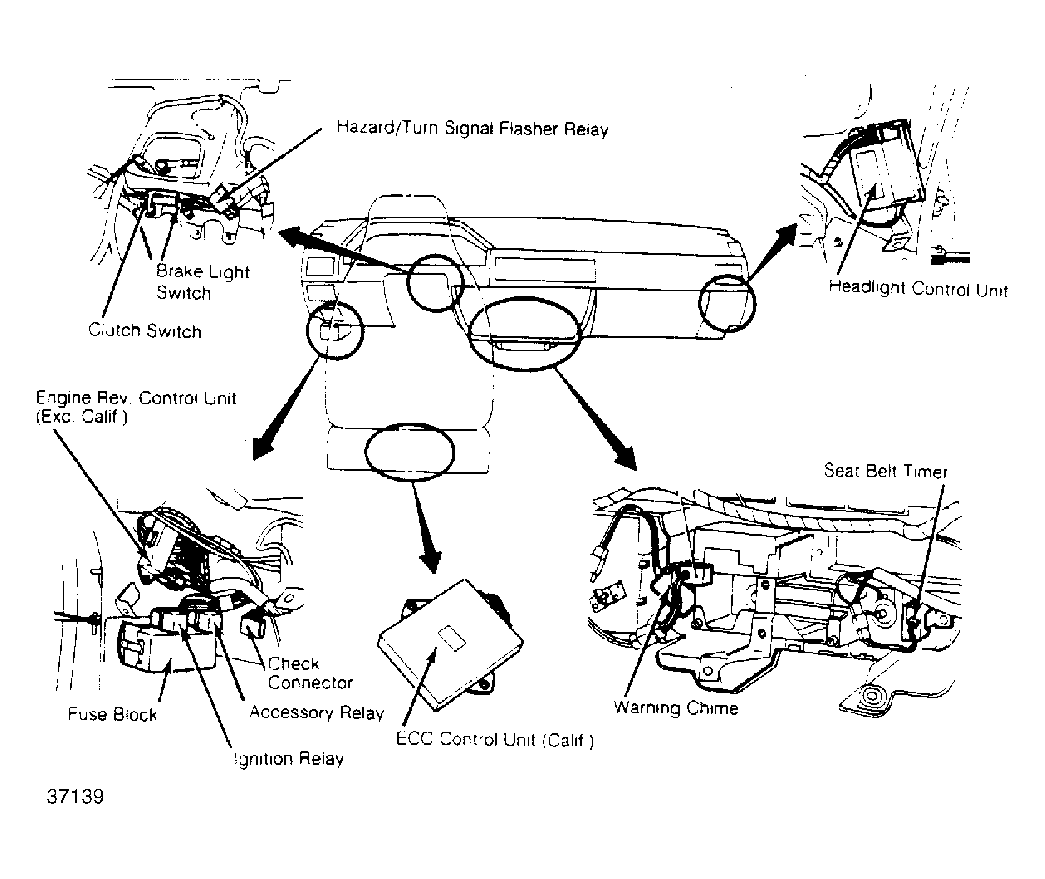

CONTROL UNITS LOCATION

Component Location
EEC Control Unit (Calif.) Under driver's seat. See Figure .
Engine Rev. Control Unit (Fed.) Under dash, left side. See Figure .
Headlight Control Unit On left front corner of engine compartment. See Figure .
