Rear Wiper Motor

Motor can be tested on the car. Unplug wiring and use ohmmeter to check continuity with motor stopped. Use jumper wires to operate motor by applying voltage to terminals shown in "Rear Wiper Motor Testing" chart.

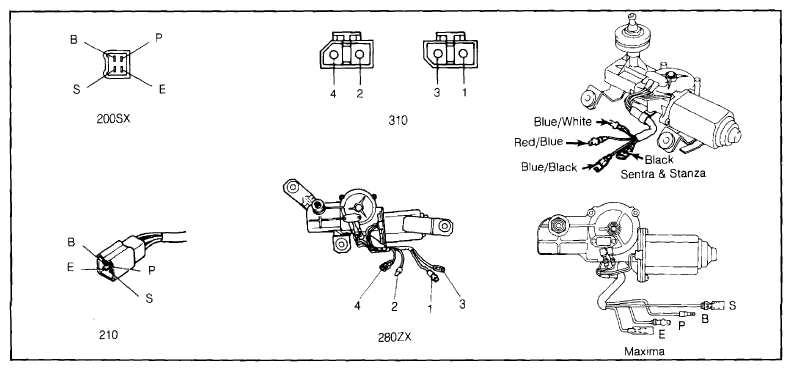

Fig 1: Terminal Identification for Testing Front Wiper Motor
Courtesy of NISSAN NORTH AMERICA, INC.

Fig 2: Terminal Identification for Testing Rear Wiper Motor
Courtesy of NISSAN NORTH AMERICA, INC.
Check park switch operation by connecting ohmmeter across park terminals while motor is running. Switch should open and close. See Fig 2.
