Combination Switch: Installation

To install, reverse removal procedure. Align tab on switch with hole in column.

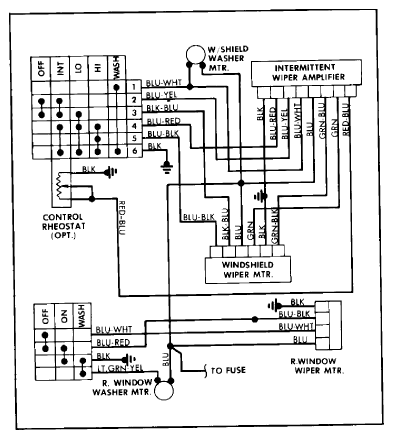

Fig 1: 200SX Wiper/Washer System Wiring Diagram

Courtesy of NISSAN NORTH AMERICA, INC.

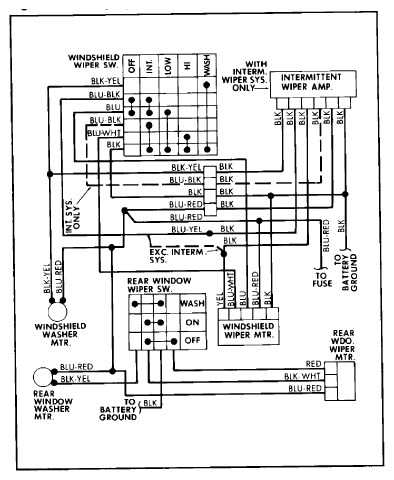

Fig 2: 210 Wiper/Washer System Wiring Diagram

Courtesy of NISSAN NORTH AMERICA, INC.

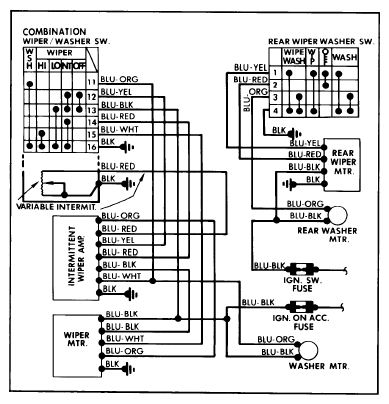

Fig 3: 280ZX Wiper/Washer System Wiring Diagram

Courtesy of NISSAN NORTH AMERICA, INC.

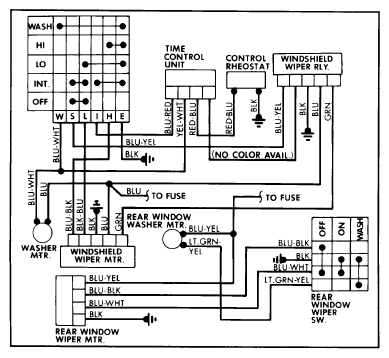

Fig 4: 310 Wiper/Washer System Wiring Diagram

Courtesy of NISSAN NORTH AMERICA, INC.

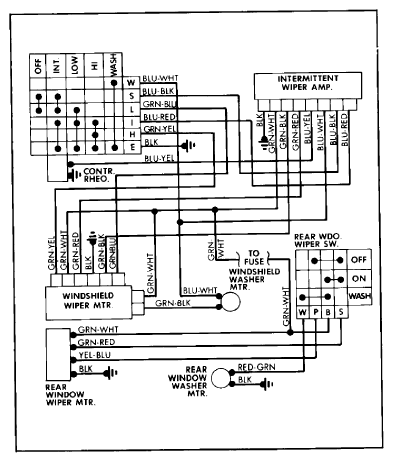

Fig 5: Maxima Wiper/Washer System Wiring Diagram

Courtesy of NISSAN NORTH AMERICA, INC.

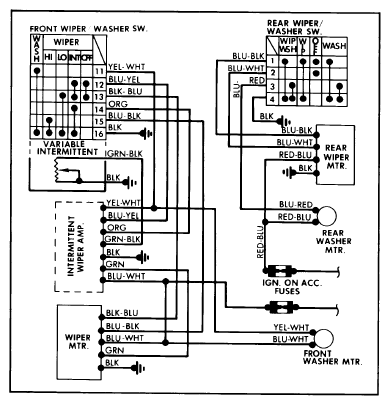

Fig 6: Pickup Wiper/Washer System Wiring Diagram

Courtesy of NISSAN NORTH AMERICA, INC.

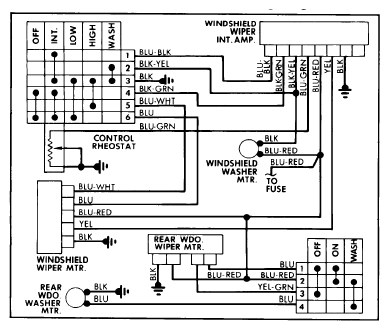

Fig 7: Sentra Wiper/Washer System Wiring Diagram

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 8: Stanza Wiper/Washer System Wiring Diagram

Courtesy of NISSAN NORTH AMERICA, INC.
