Tune-Up - 4 CYL: Distributor

All models are equipped with breakerless, transistorized ignition systems. Pickup, Stanza and 200 SX models have 2 spark plugs per cylinder and the distributor is equipped with 8 secondary wires and a dual level rotor which fires both spark plugs at the same time.

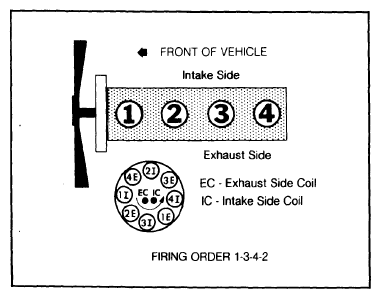

Fig 1: Firing Order and Distributor Rotation (Pickup, Stanza and 200SX Models)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 2: Firing Order and Distributor Rotation (210 Models)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 3: Firing Order and Distributor Rotation (Sentra & 310 Models)

Courtesy of NISSAN NORTH AMERICA, INC.
