Intermittent Amplifier: Pickup

Connect jumper wires to amplifier. See Fig 1. Test lamp should come on when wire is connected to pin 3. Disconnect jumper wire from pin 2. Test lamp should go off, then come back on after 6 seconds. If not, replace amplifier.

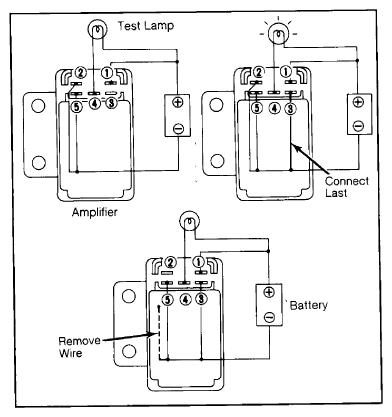

Fig 1: Test Connections for Pickup Intermittent Amplifier

Courtesy of NISSAN NORTH AMERICA, INC.

Variable intermittent amplifier is tested in the same manner.
