Intermittent Amplifier: Notes

  1. Remove amplifier from vehicle or position so jumper wires can be connected to terminals. Use care to prevent improper connections since amplifier can be ruined.

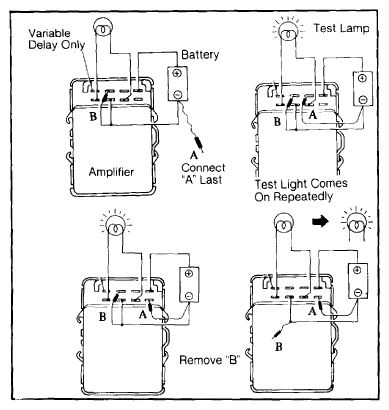

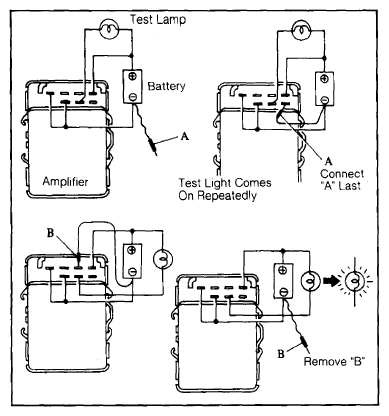

  2. Connect test lamp and battery as shown in Figure, Figure, Figure & Figure. Correct test procedures must be used for the vehicle being tested.
