All Models

  1. To assemble, reverse disassembly procedure. Clean surfaces of IC ignition unit and distributor before assembling. Be sure pick-up coil leads (if equipped) are securely attached to IC ignition unit terminals. See Fig 1.
  2. Align match marks so parts are assembled in original positions. Be sure reluctor is centered in stator, before tightening stator screws. Drive in roll pin with its slit toward outer end of shaft. Grease top of rotor shaft. Check governor operation before installing distributor.

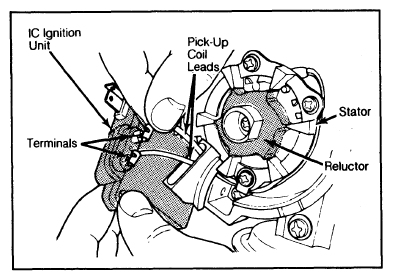

    Fig 1: Connecting Pick-Up Coil Terminals
    G09323471Courtesy of NISSAN NORTH AMERICA, INC.

    Instructions apply to 210, 280ZX, & Maxima models.
