Main Switch Test

Test main switch continuity with test light or ohmmeter. See Fig 1.

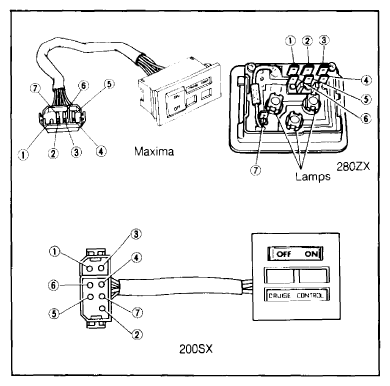

Fig 1: Main Switch Terminal Locations

Courtesy of NISSAN NORTH AMERICA, INC.

MAIN SWITCH CONTINUITY

Terminals	Normal	ON	OFF
1-2	No	Yes	No
1-6	No	Yes	No
2-6	Yes	Yes	No
3-4	Yes	.....	.....
5-7	Yes	.....	.....
6-7	Yes	.....	.....
