Inhibitor Relay

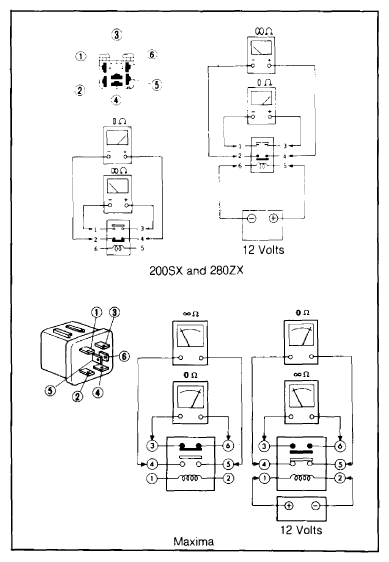

Check inhibitor relay continuity with an ohmmeter or test light. See Fig 1.
Test with and without 12 volts applied.
INHIBITOR RELAY CONTINUITY
| Check Terminals | Continuity | ||
|---|---|---|---|
| 200SX & 280ZX | |||
| Normal Condition | |||
| 5-6 | Yes | ||
| 2-4 | Yes | ||
| 1-3 | No | ||
| With 12 Volts Between 5 and 6 | |||
| 2-4 | No | ||
| 1-3 | Yes | ||
| Maxima | |||
| Normal Condition | |||
| 3-6 | Yes | ||
| 4-5 | No | ||
| With 12 Volts Between 1-2 | |||
| 3-6 | No | ||
| 4-5 | Yes | ||
