Riding Height: Pickup

Make measurement illustrated in Fig 1 with vehicle in unladen state. If measured specification does not agree with one shown in illustration, adjustment will be necessary.

• Raise vehicle and place on safety stands.
• Loosen lock nut and turn anchor bolt adjusting nut to obtain specified dimension.

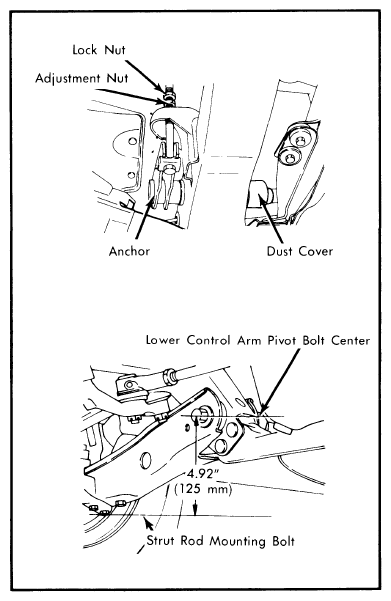

  Fig 1: Riding Height Measurement and Adjustment Locations

  Courtesy of NISSAN NORTH AMERICA, INC.
