Car Knock When Decelerating

Throttle opener adjustment incorrect, throttle control valve not working.

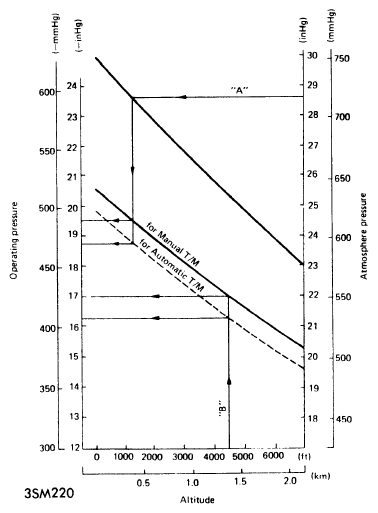

Fig 1: CONTROL VALVE OPERATING PRESSURE (OPERATING VACUUM)

G09355016

Courtesy of NISSAN NORTH AMERICA, INC.
