Exploded View

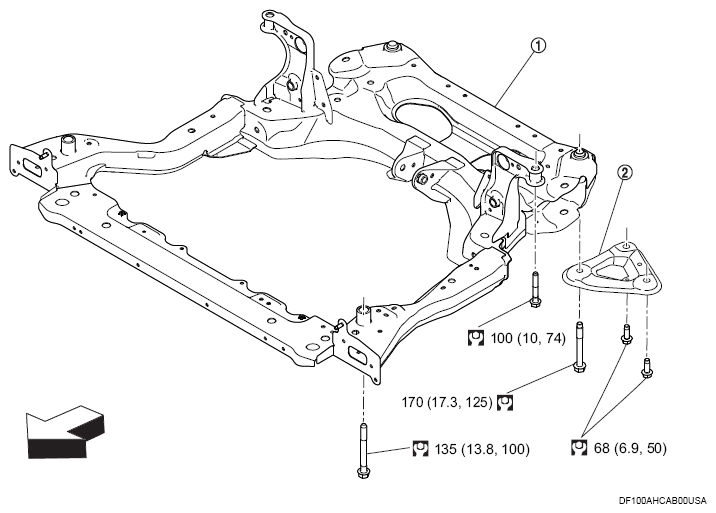

Fig 1: Exploded View Of Front Suspension Member With Torque Specifications
G16315685Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
TORQUE SPECIFICATIONS

(1) Front suspension member
(2) Member stay
: Vehicle front
: N.m (kg-m, ft-lb)
