Exploded View

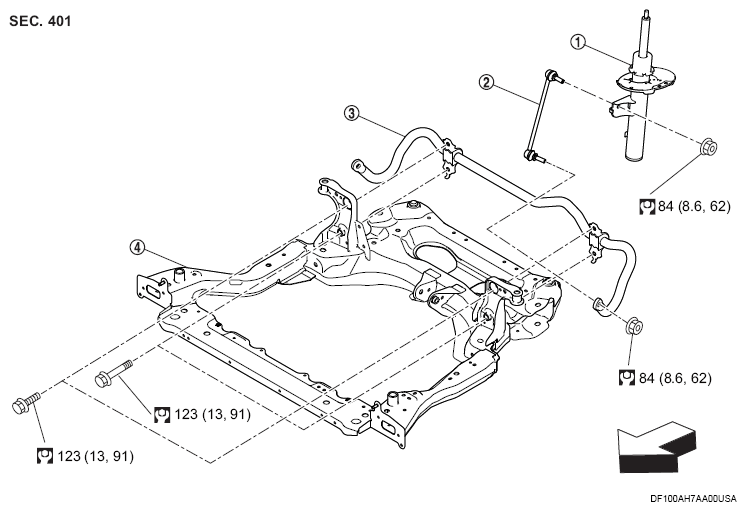

Fig 1: Exploded View Of Front Stabilizer With Torque Specifications
G16905958Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
TORQUE SPECIFICATIONS

(1) Strut
(2) Stabilizer connecting rod
(3) Stabilizer bar
(4) Front suspension member
: Vehicle front
: N.m (kg-m, ft-lb)
