Exploded View: Removal

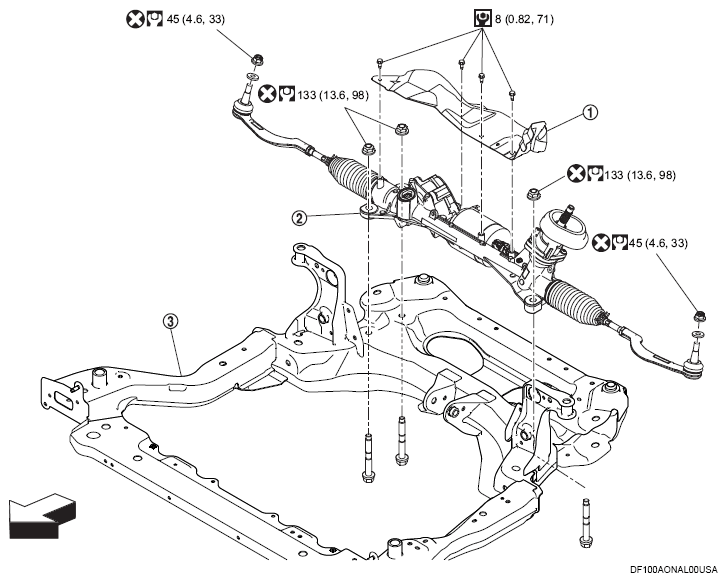

Fig 1: Exploded View Of Steering Gear And Linkage With Torque Specifications
G16900006Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
(1) Heat insulator
(2) Steering gear assembly
(3) Front suspension member
: Vehicle front
: N.m (kg-m, ft-lb)
: N.m (kg-m, in-lb)
