Removal And Installation: Notes
CAUTION:
- When removing or installing the knock sensor, be careful not to apply impact to the sensor.
- Do not reuse the knock sensor that has been dropped.

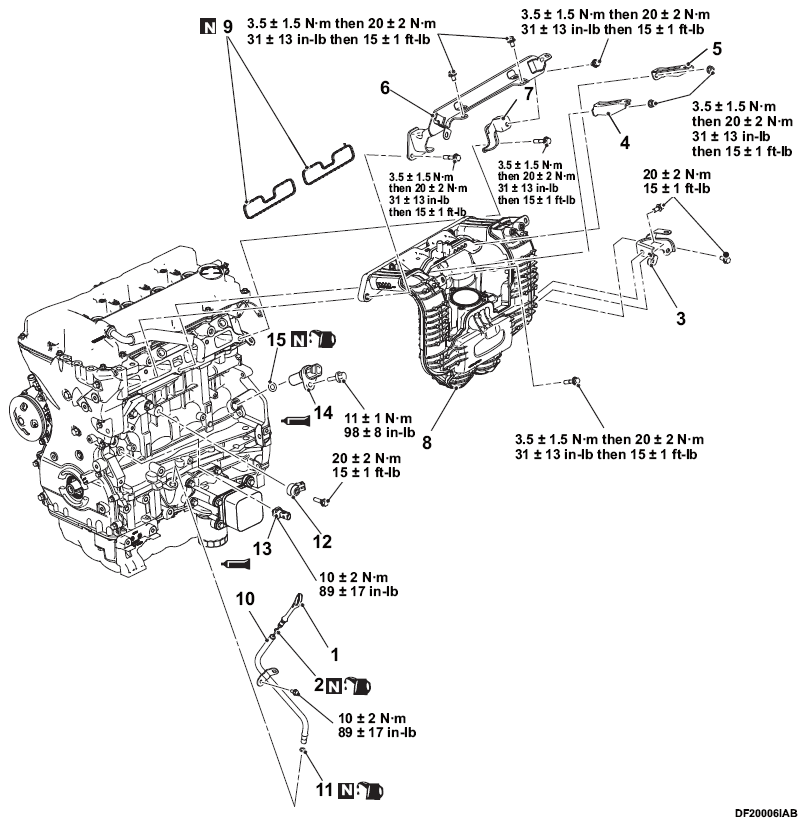

| Removal steps | |||
|---|---|---|---|
| 1. | Oil dipstick | ||
| 2. | O-ring | ||
| >>D<< | 3. | Inlet manifold stay | |
| >>D<< | 4. | Fuel tube protector RH | |
| >>D<< | 5. | Fuel tube protector LH | |
| >>D<< | 6. | Fuel tube protector | |
| >>D<< | 7. | Fuel tube protector stay | |
| >>D<< | 8. | Inlet manifold | |
| 9. | Inlet manifold gasket | ||
| 10. | Oil dipstick guide | ||
| 11. | O-ring | ||
| >>C<< | 12. | Knock sensor | |
| <<A>> | >>B<< | 13. | Engine oil pressure switch |
| >>A<< | 14. | Crankshaft position sensor | |
| 15. | O-ring |
Required Special Tool:
- MB992118: Oil pressure switch wrench (MB992118)
