Exploded View

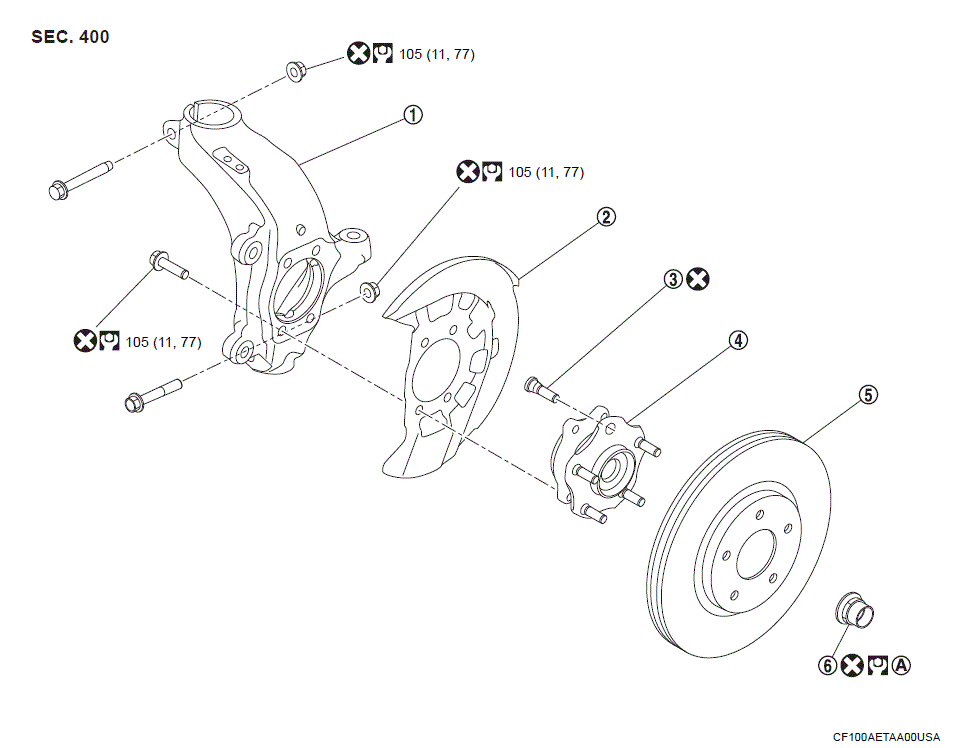

Fig 1: Exploded View Of Front Wheel Hub And Knuckle With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

TORQUE SPECIFICATIONS

(1)	Steering knuckle
(2)	Splash guard
(3)	Hub bolt
(4)	Wheel hub and bearing assembly
(5)	Disc rotor
(6)	Wheel hub lock nut
(A)	: Comply with the installation procedure when tightening . Refer to REMOVAL AND INSTALLATION .
	: N.m (kg-m, ft-lb)
	: Always replace after every disassembly .
