Individual Functions Within The System

Transmits automatic brake hold activation request signal and automatic brake hold deactivation request signal to ABS actuator and electric unit (control unit).

Turns ON/OFF automatic brake hold switch, and turns ON/OFF automatic brake hold function by chassis control module.
According to the control of chassis control module, automatic brake hold switch indicator turns ON/OFF.
A normal open type is used for automatic brake hold switch.

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

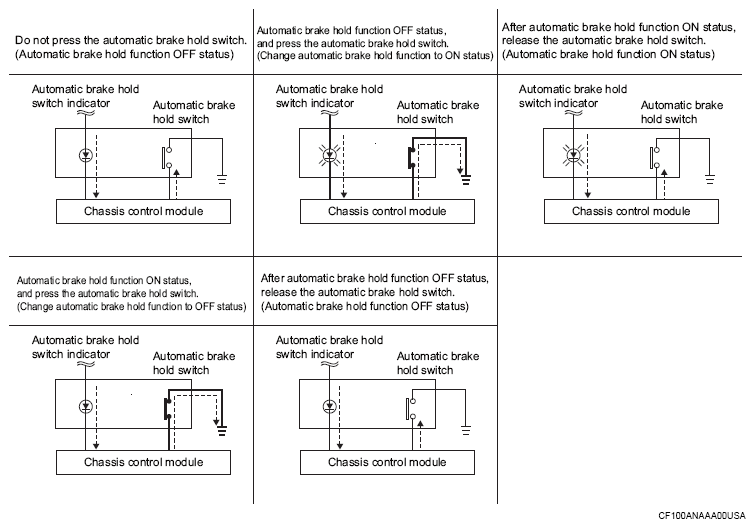

If automatic brake hold switch is pressed when automatic brake hold function is OFF, automatic brake hold function turns ON. In addition, automatic brake hold switch indicator illuminates.

NOTE: The automatic brake hold function resets to OFF every time the electric motor switch is switched from ON to OFF.

If automatic brake hold switch is pressed when automatic brake hold function is ON, automatic brake hold function turns OFF. In addition, automatic brake hold switch indicator turns OFF.

NOTE: To turn OFF automatic brake hold function while the brakes are held by automatic brake hold, press automatic brake hold switch while depressing brake pedal.
