Operation Guidance

SWITCH NAME AND FUNCTION

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

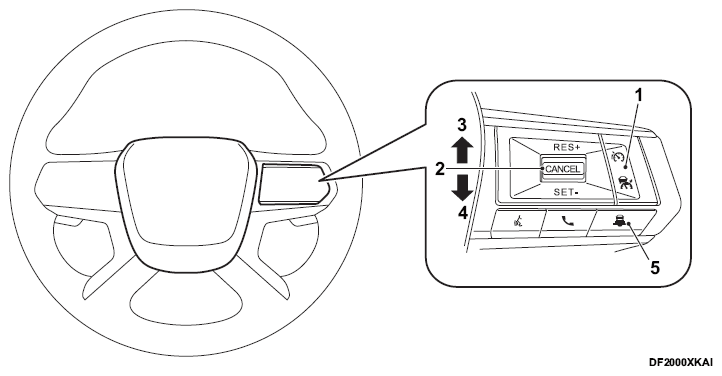

No.	Switch name	Description
1	ACC MAIN switch	ACC MAIN switch to activate the system (Press for less than 1.5 seconds)
2	CANCEL switch	Pressing the switch cancels ACC control
3	RES+ switch	Resumes set speed or increases speed incrementally Push and hold the switch to increase the set speed by 5 km/h (5 MPH) Push then quickly release the switch to increase the set speed by 1 km/h (1 MPH)
4	SET- switch	Sets desired cruise speed or reduces speed incrementally Push and hold the switch to decrease the set speed by 5 km/h (5 MPH) Push then quickly release the switch to decrease the set speed by 1 km/h (1 MPH) NOTE: The minimum set speed is 30 km/h (20 MPH)
5	DISTANCE switch	Changes the following distance from: Long, Middle, Short

SYSTEM DISPLAY AND WARNING

SYSTEM DISPLAY

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

No.	Switch name	Description
(1)	ACC status indicator	Indicates the status of ACC system.
(2)	Speed control status indicator/warning (Information display)	The vehicle speed control status is indicated by different colors and shapes.
(3)	Set vehicle speed indicator (Information display)	Indicates the set vehicle speed. Indicates 30 km/h (20 MPH) when setting less than 30 km/h (20 MPH).
(4)	Vehicle ahead detection indicator (Information display)	Indicates whether it detects a vehicle ahead.
(5)	Set distance indicator (Information display)	Indicates the selected distance between vehicles set with the DISTANCE switch.
(6)	Vehicle set speed indicator (Information display)	Indicates the vehicle set speed
(7)	ACC status indicator (Head up display)	Displays the status of ACC system.
(8)	Set vehicle speed indicator (Head up display)	Indicates the set vehicle speed Indicates 30 km/h (20 MPH) when setting less than 30 km/h (20 MPH)
(9)	Detected speed limit sign indicator (Head up display)	Indicates the currently detected speed limit sign
(10)	Vehicle ahead detection indicator (Head up display)	Indicates whether it detects a vehicle ahead
(11)	Set distance indicator (Head up display)	Indicates the selected distance between vehicles set with the DISTANCE switch

SYSTEM CONTROL CONDITION DISPLAY

When ACC is OFF, pressing the main switch (for less than 1.5 seconds) causes the ACC system to enter standby mode.

APPROACH WARNING DISPLAY

If own vehicle comes closer to a vehicle ahead due to rapid deceleration of that vehicle or if another vehicle cuts in, the system warns the driver with the buzzer and ACC system display. Decelerate by depressing the brake pedal to maintain a safe vehicle distance if:

The buzzer sounds.
The vehicle ahead detection indicator blinks in yellow.

The warning buzzer may not sound in some cases when there is a short distance between vehicles. Some examples are:

When the vehicles are traveling at the same speed and the distance between vehicles is not changing.
When the vehicle ahead is traveling faster and the distance between vehicles is increasing.
When a vehicle cuts in at near own vehicle.

The warning buzzer will not sound when own vehicle approaches vehicles that are parked or moving slowly.

The warning buzzer will not sound when the accelerator pedal is depressed, overriding the ACC system.

The approach warning buzzer may sound and the system display may blink when the distance sensor detects some reflectors which are fitted on vehicles in other lanes or on the side of the road.

This may cause the ACC system to decelerate or accelerate the vehicle.

The distance sensor may detect these objects when the vehicle is driven on winding roads, hilly roads or when entering or exiting a curve.

The distance sensor may also detect reflectors on narrow roads or in road construction zones.

In these cases, driver will have to manually control the proper distance ahead of own vehicle.

Also, the sensor sensitivity can be affected by vehicle operation (steering maneuver or driving position in the lane) or traffic or vehicle condition (for example, if a vehicle is being driven with some damage).

Condition	Display on information display	Display on head up display
When own vehicle comes closer to the vehicle ahead and it is judged that the distance between the vehicles is not sufficient	Vehicle ahead detection indicator: Yellow (Blink) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	Vehicle ahead detection indicator: Yellow (Blink) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

WARNING LIGHT AND AUTOMATIC CANCELLATION DISPLAY

Condition	Description	Display on information display
When the ASC is turned OFF When the SNOW mode, MUD mode or GRAVEL mode is selected	A buzzer sounds and the control is automatically canceled. NOTE: When the condition is no longer present, turn the system OFF. Turn the ACC system back on to use the system.	Currently Unavailable
When the ASC operates When a wheel slips	A buzzer sounds and the control is automatically canceled. NOTE: When the condition is no longer present, turn the system OFF. Turn the ACC system back on to use the system.	Unavailable Slippery Road
Parking brake is applied	A buzzer sounds and the control is automatically canceled. NOTE: After releasing the parking brake, turn the system OFF. Turn the ACC system back on to use the system.	Unavailable Parking Brake is ON
When the distance sensor is dirty, making it impossible to detect a vehicle ahead	A buzzer sounds and the control is automatically canceled. NOTE: Stop the vehicle in a safe place and turn the PHEV system OFF. Check to see if the distance sensor area of the front grille is blocked. If the distance sensor area of the front grille is blocked, remove the blocking material. After turning the PHEV system ON, press the main switch to turn the ACC system ON.	Forward Driving Aids Temporarily Disabled Front Sensor Blocked See Owner's Manual
When the system is malfunctioning	A buzzer sounds and the control is automatically canceled. NOTE: Stop the vehicle in a safe place. After turning the PHEV system OFF, turn the PHEV system ON again, then press the main switch to turn the ACC system ON. There may be a malfunction in the system if the ACC system does not go into standby mode, or if the warning message remains on the display.	Malfunction See Owner's Manual

Condition			Display on information display	Display on head up display
Standby mode			Speed control status indicator/warning: Gray Set vehicle speed indicator: Gray Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	-
Standby mode			White Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	-
Control mode	Without a vehicle ahead	Set vehicle distance (Long)	Speed control status indicator/warning: Green Set vehicle speed indicator: Green Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	ACC status indicator: Green Set vehicle speed indicator: Green Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
		Set vehicle distance (Long)	Green Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	Green Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
		Set vehicle distance (Middle)	Speed control status indicator/warning: Green Set vehicle speed indicator: Green Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	ACC status indicator: Green Set vehicle speed indicator: Green Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Control mode	Without a vehicle ahead	Set vehicle distance (Middle)	Green Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	Green Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
		Set vehicle distance (Short)	Speed control status indicator/warning: Green Set vehicle speed indicator: Green Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	ACC status indicator: Green Set vehicle speed indicator: Green Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
		Set vehicle distance (Short)	Green Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	Green Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
		When the vehicle speed exceeds the set speed	Speed control status indicator/warning: Green Set vehicle speed indicator: Green (Blink) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	ACC status indicator: Green Set vehicle speed indicator: Green (Blink) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
	With a vehicle ahead	Set vehicle distance (Long)	Speed control status indicator/warning: Green Set vehicle speed indicator: Green Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	ACC status indicator: Green Set vehicle speed indicator: Green Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
	With a vehicle ahead	Set vehicle distance (Long)	Green Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	Green Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Control mode	With a vehicle ahead	Set vehicle distance (Middle)	Speed control status indicator/warning: Green Set vehicle speed indicator: Green Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	ACC status indicator: Green Set vehicle speed indicator: Green Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
		Set vehicle distance (Middle)	Green Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	Green Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
		Set vehicle distance (Short)	Speed control status indicator/warning: Green Set vehicle speed indicator: Green Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	ACC status indicator: Green Set vehicle speed indicator: Green Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
		Set vehicle distance (Short)	Green Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	Green Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
		When the vehicle speed exceeds the set speed	Speed control status indicator/warning: Green Set vehicle speed indicator: Green (Blink) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	ACC status indicator: Green Set vehicle speed indicator: Green (Blink) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
		When the vehicle speed exceeds the set speed	When the system adjusts the speed depending on turns or exits Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	-
Control mode	With a vehicle ahead	When the system detects a change of the speed limit and the new speed limit sign is applied to the vehicle set speed automatically	Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	-
