Exploded View

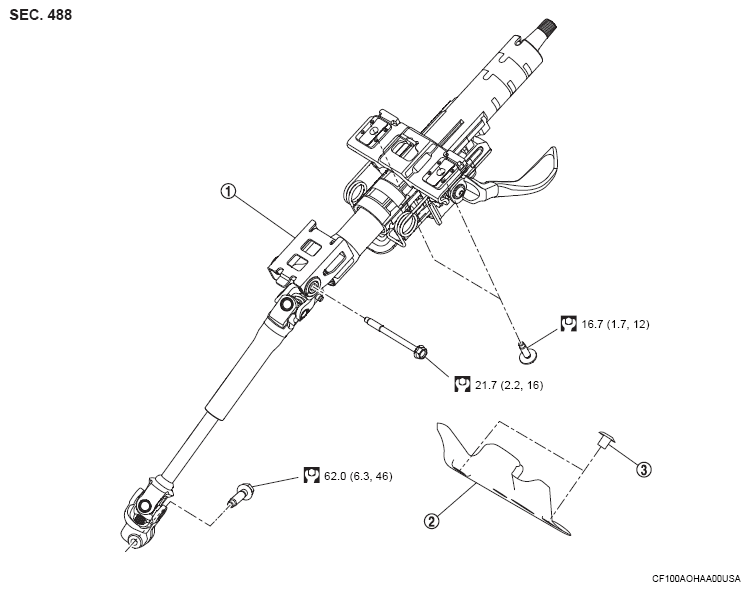

Fig 1: Exploded View Of Steering Column With Torque Specifications
G16900000Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
(1) Steering column assembly
(2) Steering shaft lower cover
(3) Clip
: N.m (kg-m, ft-lb)
