Purge Control System Check

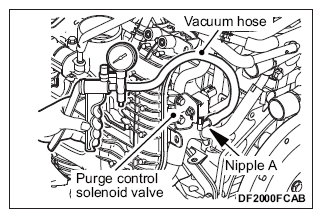

- Connect the hand vacuum pump to the nipple A of the evaporative emission purge solenoid.
- When the engine is cold or hot, apply a vacuum of 53 kPa (7.7 psi), and check the condition of the vacuum.
When engine is cold [Engine coolant temperature: 40°C (68°F) or less]
Engine condition Normal condition Continuous idling mode Vacuum is maintained. When engine is hot [Engine coolant temperature: 80°C (176°F) or higher]
Engine condition Normal condition Continuous idling mode (after 4 minutes have passed since the engine was started) Vacuum will leak.
