Rear Power Window Switch
>>
Component Operation
Component Operation

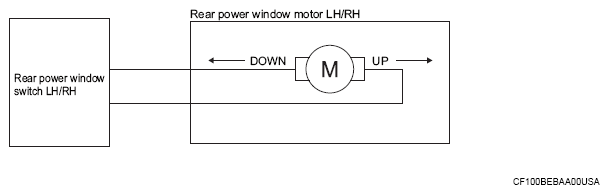

When rear power window switch LH/RH is operated, it transmits signal to each rear power window motor.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

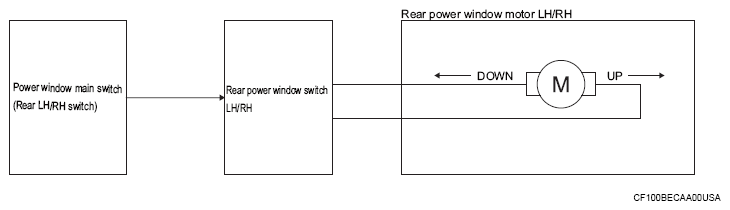

Transmits the operation signal from power window main switch (rear LH/RH switch) to the each rear power window motor.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
