Removal And Installation: Notes

Post-installation Operation

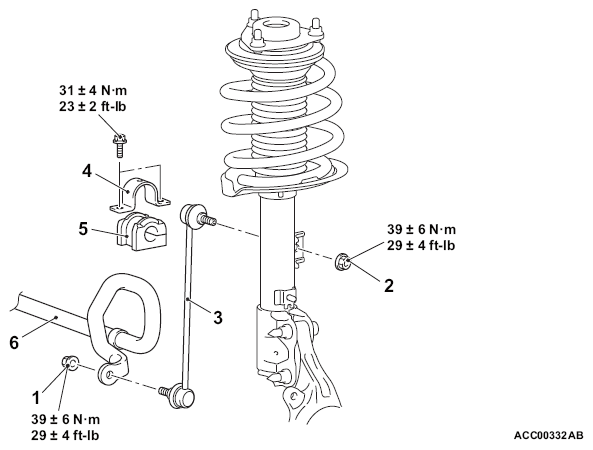

Fig 1: Removing/Installing Stabilizer Bar Components Location With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

			Stabilizer link removal steps
<<A>>	>>C<<	1.	Stabilizer link and stabilizer bar connection nut
<<B>>	>>D<<	2.	Stabilizer link and strut connection nut
		3.	Stabilizer link
			Stabilizer bushing removal steps
		4.	Stabilizer bar bracket
	>>B<<	5.	Stabilizer bushing
			Stabilizer bar removal steps
<<A>>	>>C<<	1.	Stabilizer link and stabilizer bar connection nut
	>>B<<	4.	Stabilizer bar bracket
		5.	Stabilizer bushing
		•	Engine room under cover front B (Refer to UNDER COVER ) <AWD>
			Stabilizer bar removal steps
		•	Engine roll stopper rod (Refer to Engine Roll Stopper Rod REMOVAL AND INSTALLATION ) < AWD >
		•	Dynamic damper (Refer to Transfer Assembly REMOVAL AND INSTALLATION ) <AWD>
		•	Front floor backbone brace (Refer to Loose Panel REMOVAL AND INSTALLATION )
		•	Exhaust center pipe and exhaust front pipe disconnection (Refer to EXHAUST PIPE, MAIN MUFFLER AND CATALYTIC AND CATALYTIC CONVERTER )
<<C>>	>>A<<	6.	Stabilizer bar
