Removal And Installation

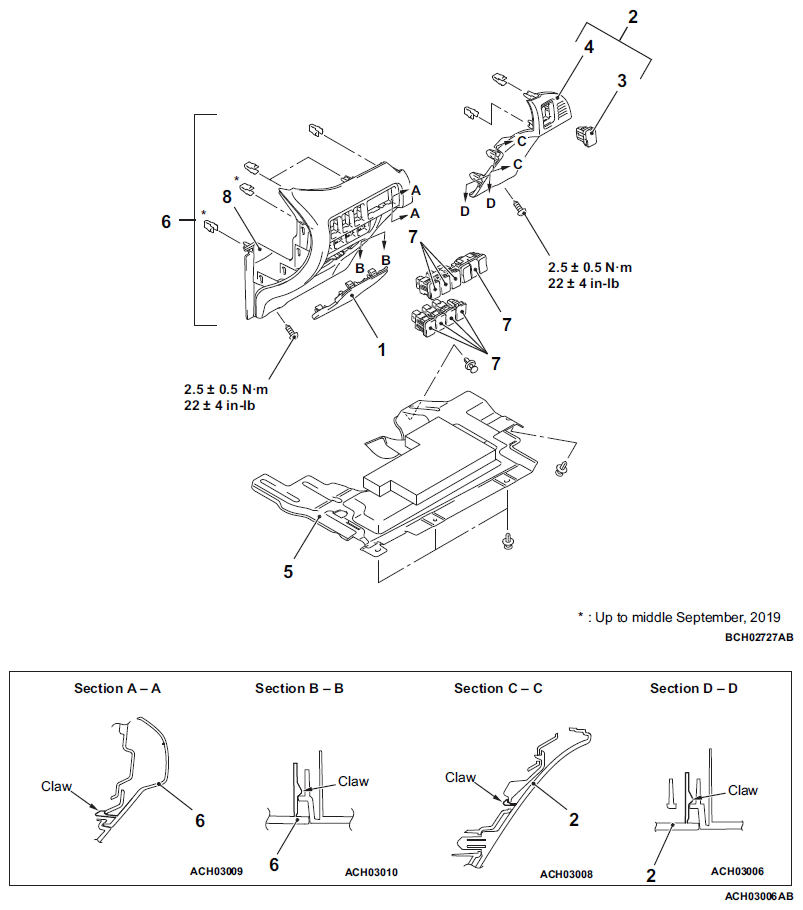

Fig 1: Removing/Installing Instrument Lower Panel Components Location With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

	Removal steps
1.	Instrument panel fuse box lid
2.	Instrument panel under cover assembly
3.	Switch or switch plug
4.	Instrument panel under cover
•	Cowl side trim (Refer to TRIMS ).
5.	Instrument panel cover lower
•	Instrument panel side cover (Refer to SERVICE PRECAUTIONS ).
6.	Instrument panel lower assembly
7.	Switch or switch plug
8.	Instrument panel lower
