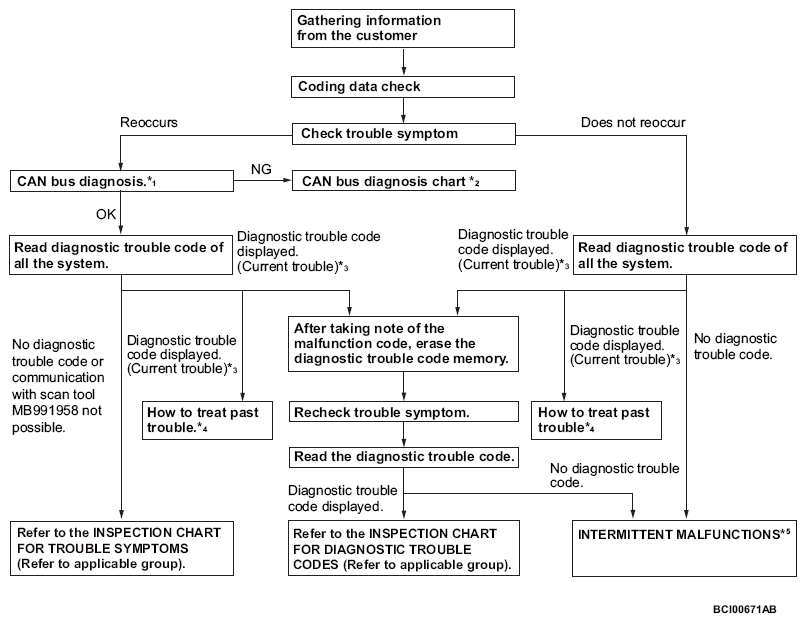

Diagnostic method
- *1: For how to diagnose CAN bus lines, refer to PRECAUTIONS ON HOW TO REPAIR THE TERMINATOR RESISTOR .
- *2: For the CAN bus diagnosis chart, refer to DIAGNOSIS<CAN> .
- *3: When scan tool MB991958 detects a diagnostic trouble code, its display informs users whether a mechanical symptom currently exists or whether it existed before. The message for the former state identifies it as an "Active" and the message for the latter identifies it as a "Stored".
- *4: For how to treat past trouble, refer to HOW TO TREAT PAST TROUBLE .
- *5: For how to cope with intermittent malfunctions, refer to CONNECTOR ENGAGEMENT INSPECTION .
