Removal And Installation: Notes

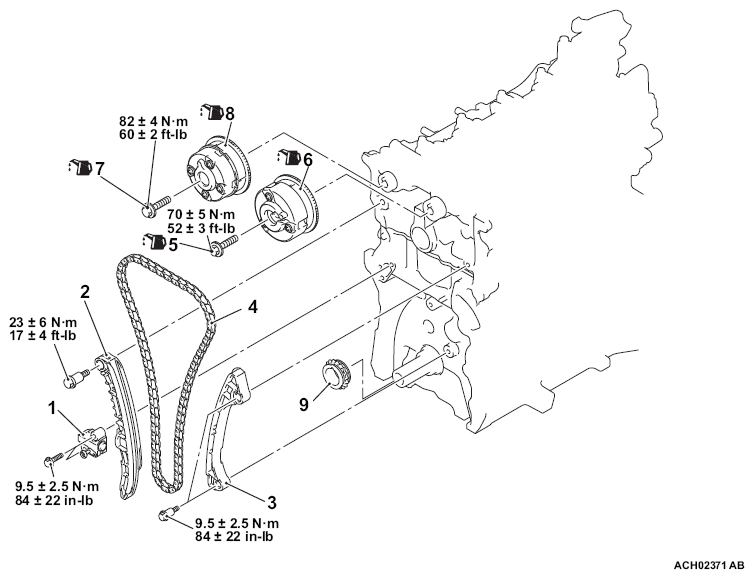

Fig 1: Removing/Installing Timing Chain Components Location With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Removal steps
<<A>>	>>C<<	1.	Timing chain tensioner assembly
		2.	Tensioner lever assembly
		3.	Timing chain guide assembly
	>>B<<	4.	Timing chain
<<B>>	>>A<<	5.	V.V.T. sprocket bolt (intake)
<<B>>	>>A<<	6.	V.V.T. sprocket assembly (intake)
<<B>>	>>A<<	7.	V.V.T. sprocket bolt (exhaust)
<<B>>	>>A<<	8.	V.V.T. sprocket assembly (exhaust)
		9.	Crank shaft sprocket
