Removal And Installation: Notes

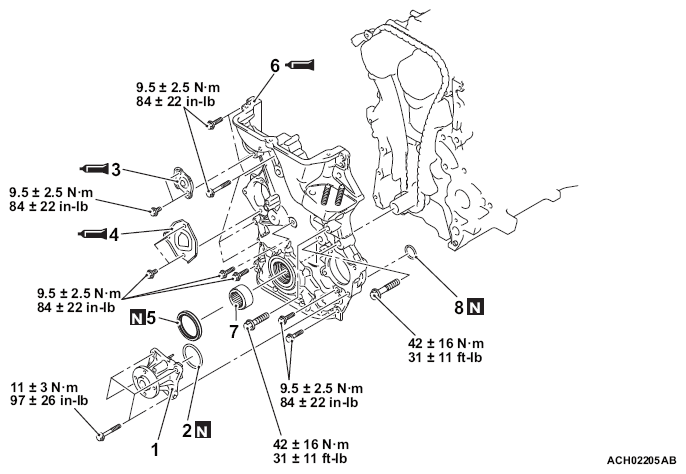

Fig 1: Removing/Installing Timing Chain Case Components Location With Torque Specification

G16565303

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Removal steps
	>>E<<	1.	Water pump
	>>E<<	2.	O-ring
	>>D<<	3.	Timing chain case cover B
	>>C<<	4.	Timing chain case cover A
	>>B<<	5.	Oil seal
<<A>>	>>A<<	6.	Timing chain case
		7.	Oil pump drive shaft
		8.	O-ring

Required Special Tools:

MD998382: Crankshaft front oil seal installer
